Product Detailed Parameters
- Description：DIODE MOD GP 1600V 200A MOD
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1600 V
- Current - Average Rectified (Io) (per Diode)：200A
- Voltage - Forward (Vf) (Max) @ If：1.5 V @ 500 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：10 mA @ 1600 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

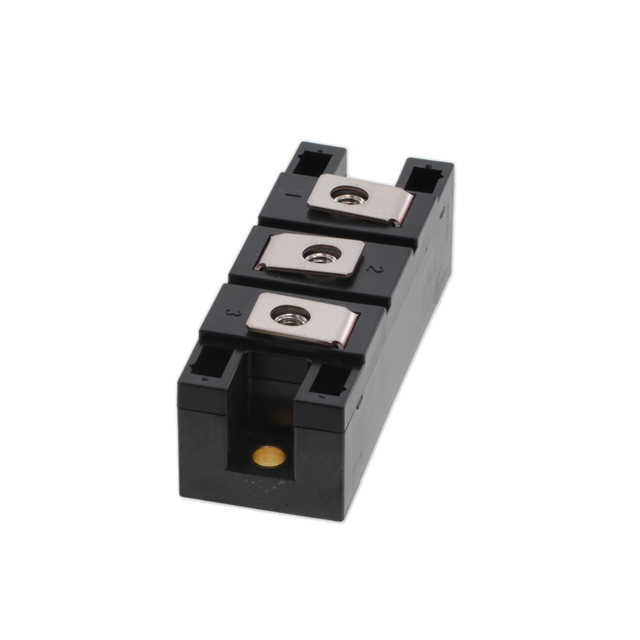

The PD200MYN16 is a diode module from KYOCERA AVX designed for high-power applications. It features a double series semiconductor structure with a maximum off-state voltage of 1.6kV and a load current capacity of 200A. The device has a standard recovery speed exceeding 500ns and utilizes standard technology. Electrical characteristics include a maximum forward voltage of 1.5V and a reverse current of 10mA. Operating temperature ranges from -40°C to +150°C. The component is housed in a module package intended for chassis mounting.
Feature Summary
- Double series diode configuration for phase leg applications
- Chassis mount module design for robust integration
- Standard recovery speed suitable for general power conversion
Applications
- Industrial motor drives
- Power supply units
- Inverter systems
Procurement Notes
Verify the obsolete lifecycle status before procurement planning, as availability may be limited or restricted to remaining stock. Confirm that the chassis mount form factor aligns with existing thermal management infrastructure. Ensure that the 1.6kV voltage rating and 200A current capacity meet the specific circuit requirements. Check for RoHS compliance documentation if environmental regulations apply to the end product assembly process.
Selection Notes
Select this component when a high-current, high-voltage diode module is required for phase leg configurations. The standard recovery characteristic makes it suitable for lower frequency switching applications compared to ultra-fast variants. Consider the chassis mount requirement for mechanical stability and heat dissipation. Evaluate the -40°C to +150°C operating range against the environmental conditions of the target application to ensure reliable performance throughout the operational lifespan.
Part Context
This part belongs to the diode array category within KYOCERA AVX's portfolio. It is specifically engineered for rectification tasks in power electronics. The module integrates two diodes in a series connection to handle higher voltages. It represents a solution for applications requiring significant current handling capabilities in a compact, mountable format.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete lifecycle status, direct replacements should be identified through official manufacturer channels or authorized distributors. Verify electrical compatibility including voltage, current, and recovery speed when sourcing alternatives.
