PD790-03M2

Pressure Sensors Transducers Overview

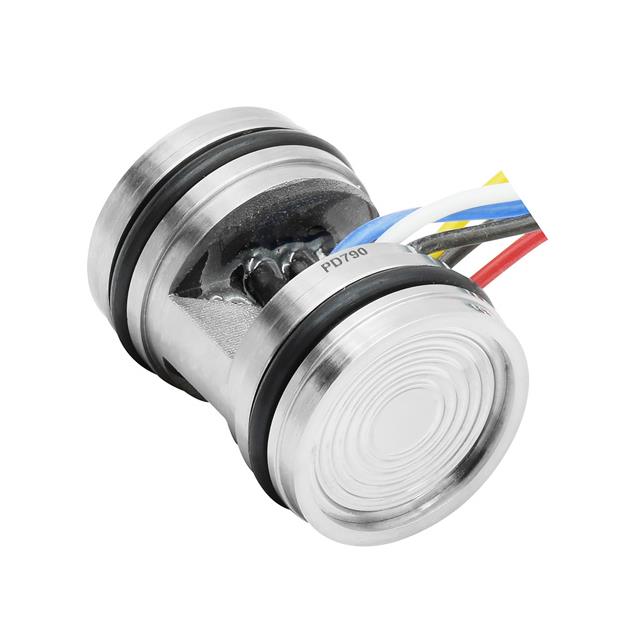

The L-com PD790-03M2 is a differential pressure transmitter designed for industrial applications. It features an isolated construction utilizing 316L stainless steel housing, ensuring durability in harsh environments. The sensor operates within a measurement range of 0 to 100 kPa and provides a voltage output interface with a nominal supply voltage of 10 V DC. It exhibits a low power consumption profile with a supply current of 2 mA. The device is engineered for high stability and reliability, incorporating wide temperature compensation and zero correction capabilities. It functions effectively across an operating temperature range from -40°C to 125°C.

Pressure Sensors Transducers Feature Summary

• Isolated construction with 316L stainless steel housing for corrosion resistance
• Piezo-resistive sensing technology with wide temperature compensation
• Differential pressure measurement capability
• Voltage output interface with low power consumption

Pressure Sensors Transducers Applications

• Industrial process monitoring
• Cylinder pressure measurement
• HVAC system diagnostics
• Fluid flow monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffixes and configuration options available through authorized distributors. Confirm that the 10 V DC supply requirement aligns with your system design before procurement. Ensure the 316L stainless steel material specification meets your environmental corrosion requirements. Check for any specific calibration certificates or documentation provided by the manufacturer for quality assurance purposes.

Pressure Sensors Transducers Selection Notes

Select this model when differential pressure measurement up to 100 kPa is required in corrosive environments. The 316L stainless steel construction offers robust protection against chemical exposure. Consider the wide operating temperature range if deployment occurs in extreme thermal conditions. The low current draw makes it suitable for battery-powered or energy-constrained industrial systems requiring reliable voltage output signals.

Pressure Sensors Transducers Part Context

The PD790-03M2 belongs to the PD790 series of industrial pressure sensors manufactured by L-com. This series focuses on providing stable and reliable piezo-resistive solutions for demanding industrial applications. The component represents L-com's commitment to offering specialized interconnection and sensing products that address complex engineering challenges in fluid dynamics and process control sectors.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult L-com technical support for direct equivalents or cross-reference options based on specific performance requirements.

Pressure Sensors Transducers FAQ

What is the measurement range of the PD790-03M2?

The PD790-03M2 measures differential pressure in the range of 0 to 100 kPa.

What material is used for the housing?

The housing is constructed from 316L stainless steel to provide isolation and corrosion resistance.

What is the nominal supply voltage?

The nominal supply voltage for the PD790-03M2 is 10 V DC.
