Product Detailed Parameters
- Description：IGBT MODULE, 2IN1, 650V/150A
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- IGBT Type：-
- Configuration：Dual, Common Source
- Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 150A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：446 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：12500 pF @ 25 V
Download product information
Overview

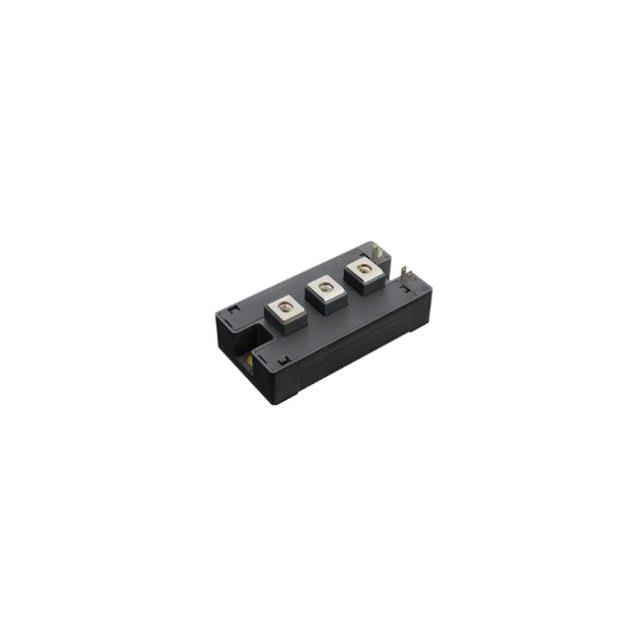

The PDMB150W6 is a dual IGBT module manufactured by KYOCERA AVX. It features a common source configuration with a voltage rating of 650 V and a continuous collector current of 150 A. The device is designed for chassis mounting and supports power dissipation up to 446 W. This component utilizes silicon-based semiconductor technology suitable for high-power switching applications.
Feature Summary
- Dual IGBT structure with common source topology
- High current handling capability at 150 A
- Robust thermal management for 446 W dissipation
- Chassis mount mechanical design
Applications
- Industrial motor drives
- Power conversion systems
- Inverter circuits
Procurement Notes
Verify the specific datasheet revision and electrical characteristics directly from KYOCERA AVX official documentation before integration. Confirm that the chassis mounting requirements and thermal interface specifications align with the target system design. Ensure compliance with RoHS directives and other relevant regulatory standards applicable to the final product deployment.
Selection Notes
Select this module when a dual IGBT solution with a 650 V rating and 150 A capacity is required. The common source configuration simplifies gate drive circuitry compared to half-bridge arrangements. Evaluate the 446 W thermal performance against the application's heat sink capabilities to ensure reliable operation under maximum load conditions.
Part Context
This component belongs to the IGBT module category within KYOCERA AVX's power electronics portfolio. It serves as a critical switching element in medium-to-high power electronic systems, providing efficient control of electrical energy flow through its robust silicon construction and standardized chassis mounting form factor.
Replacement Considerations
Consult official KYOCERA AVX substitution guides for verified alternative part numbers. Cross-reference pinout compatibility and thermal resistance values when evaluating potential replacements to maintain system integrity.
