PE-W28PS1002

Overview

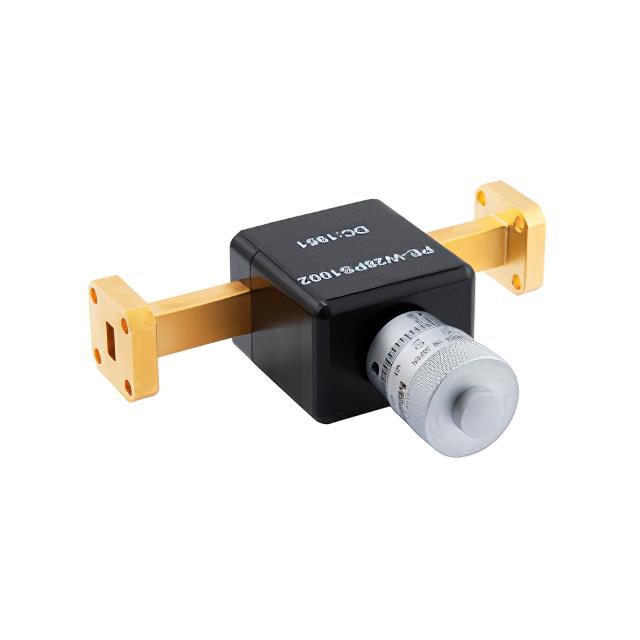

The PE-W28PS1002 is a WR-28 waveguide phase shifter manufactured by Pasternack. It operates within the frequency range of 26.5 GHz to 40 GHz and provides an adjustable phase shift from 0 to 180 degrees. The component features UG-599/U flanges for secure waveguide interface connections. This signal conditioning device is designed for high-frequency applications requiring precise phase control in millimeter-wave systems.

Feature Summary

• Provides continuous 0 to 180 degree phase adjustment capability
• Operates within the WR-28 waveguide band from 26.5 GHz to 40 GHz
• Utilizes standard UG-599/U flange interfaces for reliable mounting

Applications

• Millimeter-wave radar systems
• Satellite communication ground stations
• Test and measurement instrumentation

Procurement Notes

Verify the specific UG-599/U flange configuration and mating requirements with your existing waveguide infrastructure before procurement. Confirm that the operating frequency range aligns with your system's 26.5 GHz to 40 GHz specifications. Ensure proper handling procedures are followed due to the precision nature of waveguide components.

Selection Notes

Select this component when a fixed phase shift is insufficient and adjustable control between 0 and 180 degrees is required. The WR-28 size dictates the physical footprint and frequency band suitability. Consider the UG-599/U flange standard if compatibility with existing waveguide hardware is necessary for integration into larger assemblies.

Part Context

This part belongs to Pasternack's waveguide signal conditioning portfolio, specifically designed for millimeter-wave frequencies. It serves as a critical component for manipulating signal phase in high-frequency transmission lines without significant insertion loss, supporting complex antenna array beamforming or calibration tasks.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
