PE-W34TR1001

Overview

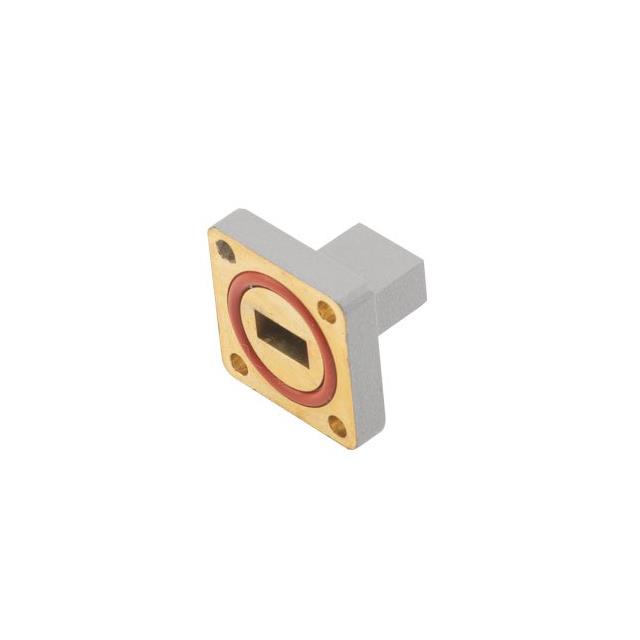

The PE-W34TR1001 is a 1-watt WR-34 waveguide load manufactured by Pasternack. It operates within the frequency range of 19.6 GHz to 21.2 GHz. The component features brass construction with UG Square Cover termination. Its average maximum Voltage Standing Wave Ratio (VSWR) is specified as 1.15:1.

Feature Summary

• Designed for high-frequency waveguide applications in the K-band spectrum
• Constructed from brass material for durability and thermal stability
• Includes UG Square Cover for secure waveguide interface connection

Applications

• Waveguide system terminations
• RF test and measurement setups
• Signal source isolation

Procurement Notes

Verify the specific operating frequency range and power handling requirements against your system specifications before procurement. Confirm that the UG Square Cover interface matches your existing waveguide hardware. Ensure environmental conditions align with the component's operational limits.

Selection Notes

Select this component when a 1-watt capacity is sufficient for the application. The WR-34 size dictates the physical dimensions and cutoff frequency. Consider the brass material properties for thermal management needs. Verify compatibility with standard UG Square Cover mating interfaces.

Part Context

This part belongs to Pasternack's line of waveguide terminations. It serves as a passive RF component designed to absorb microwave energy. The WR-34 designation indicates the waveguide size, defining its operational bandwidth and physical constraints within larger RF systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical performance if considering alternative manufacturers.
