PE11S3900

Overview

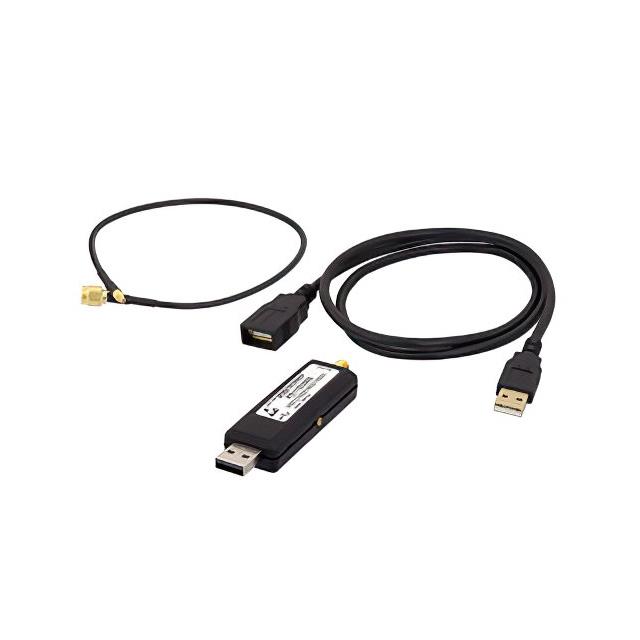

The PE11S3900 is a USB-controlled Phase Locked Loop (PLL) frequency synthesizer module manufactured by Pasternack. It operates within a frequency range of 35 MHz to 4.4 GHz and delivers an output power of -20 dBm. The device utilizes a 50 MHz reference signal and features an SMA connector for output transmission. Designed as part of the USB Controlled PLL Frequency Synthesizers series, it integrates RF synthesis capabilities into a compact form factor suitable for modular test and measurement applications.

Feature Summary

• USB interface control for digital configuration
• Wideband frequency synthesis from 35 MHz to 4.4 GHz
• Integrated phase locked loop architecture

Applications

• RF signal generation in test equipment
• Wireless communication system development
• Radar simulation and testing

Procurement Notes

Verify component authenticity through authorized Pasternack channels or certified distributors. Confirm that the received unit matches the specific PE11S3900 designation and includes relevant documentation. Ensure handling procedures comply with electrostatic discharge protocols. Check for physical integrity of the SMA connector prior to installation. Validate operational parameters against the official datasheet specifications upon receipt.

Selection Notes

Select this module when a digitally controlled, wide-range frequency source is required. The USB interface allows for direct computer integration without additional external controllers. Consider the -20 dBm output level for downstream amplification needs. Verify compatibility with the 50 MHz reference input requirement. Evaluate the SMA interface against existing cabling infrastructure.

Part Context

This component belongs to the USB Controlled PLL Frequency Synthesizers series by Pasternack. It falls under the broader category of Wireless & RF Integrated Circuits. The product represents a specialized solution for generating stable frequencies across microwave bands using digital control methods.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for alternative modules with matching frequency ranges and interface types.
