PE1606A

Overview

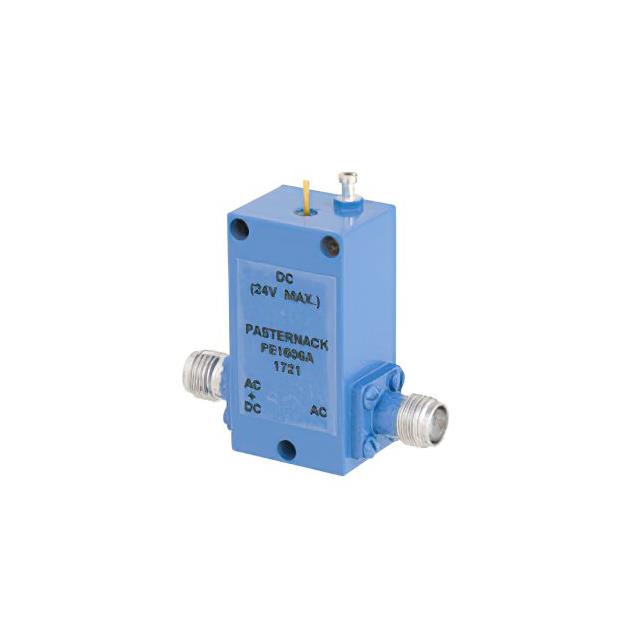

The Pasternack PE1606A is an SMA bias tee designed for radio frequency signal conditioning. It operates within a frequency range of 0.1 MHz to 12.4 GHz. The component features SMA connectors for both the RF port and the DC bias port. It is rated for a maximum DC current of 750 mA and a maximum voltage of 24 Volts DC. Key electrical specifications include a maximum VSWR of 1.6:1 and a maximum RF-to-bias isolation of 30 dB.

Feature Summary

• Provides simultaneous transmission of RF signals and DC power through a single coaxial line
• Utilizes SMA connector interfaces for both radio frequency and direct current ports
• Engineered to maintain low voltage standing wave ratio across a wide bandwidth

Applications

• Biasing active RF components such as amplifiers and oscillators
• Integrating DC control signals into RF test and measurement setups
• Powering remote antenna systems via coaxial infrastructure

Procurement Notes

Verify the specific part number suffix against official Pasternack documentation to ensure correct connector type and rating specifications. Confirm that the required DC current and voltage limits align with the 750 mA and 24 VDC ratings. Check for any available datasheets or mechanical drawings to validate physical dimensions and interface compatibility before procurement.

Selection Notes

Select this component when a broadband bias tee is required up to 12.4 GHz with SMA interfaces. Ensure the application does not exceed the 750 mA current or 24 VDC voltage limits. Consider the 30 dB isolation specification if minimizing RF leakage to the DC source is critical. Verify that the 1.6:1 VSWR meets the system's signal integrity requirements.

Part Context

The PE1606A belongs to Pasternack's series of general-purpose RF bias tees. These components are designed to simplify circuit design by combining RF and DC paths. The model utilizes standard SMA connectors, making it compatible with common laboratory and industrial RF equipment. It serves as a passive interconnect solution for integrating DC bias into RF signal chains.

Replacement Considerations

Consult official Pasternack documentation for confirmed substitute part numbers. Ensure any replacement maintains the 0.1 MHz to 12.4 GHz frequency range and SMA connector configuration. Verify that current and voltage ratings meet or exceed the original 750 mA and 24 VDC specifications.
