Product Detailed Parameters
- Description：0.1 MHz to 26.5 GHz 3.5mm Bias T
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：100kHz ~ 26.5GHz
- RF Type：General Purpose
- Secondary Attributes：-
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

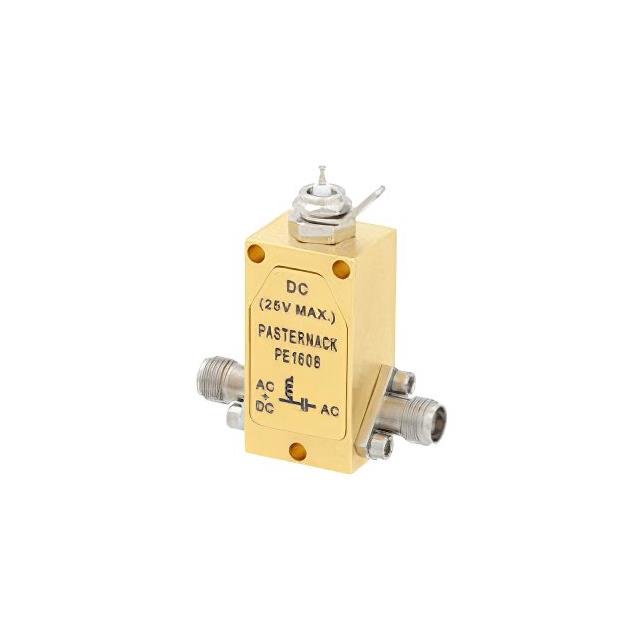

The Pasternack PE1608 is a coaxial bias tee designed for signal conditioning applications within the frequency range of 0.1 MHz to 26.5 GHz. It utilizes a 3.5mm connector interface and supports a maximum DC current rating of 750 mA with a voltage limit of 25 Volts DC. This component integrates RF and DC paths, allowing simultaneous transmission without interference. The unit is currently listed as an active product in distribution channels.
Feature Summary
- Integrates RF and DC signal paths into a single coaxial connection
- Operates across a wide frequency spectrum from 0.1 MHz to 26.5 GHz
- Supports high DC current loads up to 750 mA
- Features a robust 3.5mm connector interface for secure attachment
Applications
- RF signal conditioning in test and measurement equipment
- Biasing active components in microwave systems
- Integration into automated test setups requiring combined DC and RF signals
Procurement Notes
Verify the specific datasheet version provided by the manufacturer or authorized distributor to confirm mechanical dimensions and electrical tolerances. Ensure that the required DC current does not exceed the 750 mA rating during operation. Cross-reference the 3.5mm connector gender and mating requirements with existing system hardware before purchase.
Selection Notes
Select this component when a wide bandwidth up to 26.5 GHz is required alongside significant DC power delivery. The 3.5mm interface offers superior performance compared to standard SMA connectors at higher frequencies. Consider the physical size constraints of the installation area, as bias tees add inline length to the signal path.
Part Context
This part belongs to the Pasternack Coaxial Bias Tees (T) Series, which provides various signal conditioning solutions. The series includes models with different connector types and frequency ranges to suit diverse RF engineering needs. The PE1608 specifically targets applications requiring the combination of low-frequency DC bias with high-frequency RF signals.
Replacement Considerations
No public substitute part numbers are confirmed in the available documentation. Users should verify compatibility with alternative models based on matching frequency ranges, connector interfaces, and DC current ratings.
