PE1618

Overview

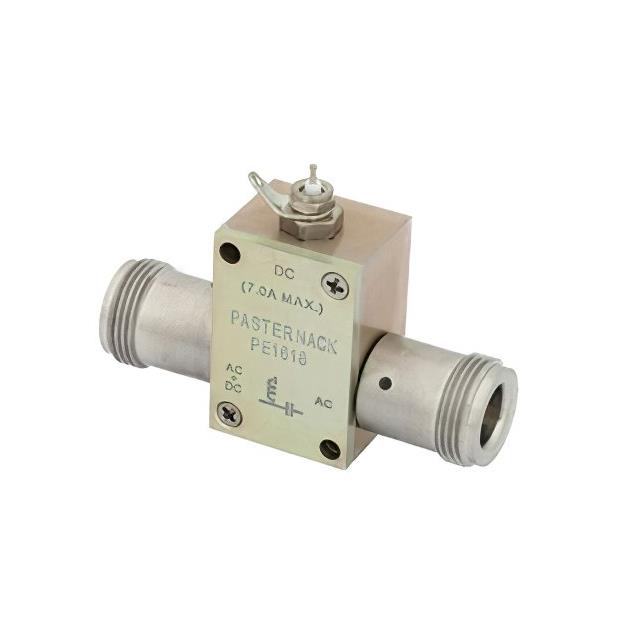

The PE1618 is an N-type bias tee manufactured by Pasternack, designed for signal conditioning applications. It operates within a frequency range of 500 MHz to 2.5 GHz. The component is rated to handle a maximum DC current of 7000 mA and supports up to 100 Volts DC. This device integrates RF and DC paths, allowing simultaneous transmission without interference. It features a robust construction suitable for demanding environments.

Feature Summary

• Integrates RF and DC signal paths into a single compact unit
• Rated for high DC current handling up to 7000 mA
• Supports DC voltages up to 100 Volts
• Operates effectively from 500 MHz to 2.5 GHz

Applications

• RF circuit biasing in communication systems
• Test and measurement equipment signal conditioning
• Wireless infrastructure component powering
• Radar system signal integration

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances and mechanical dimensions before integration. Confirm that the operating environment does not exceed the 100V DC or 7000mA ratings. Ensure connector compatibility with existing N-type interfaces. Check for any updated revision notes regarding material composition or performance characteristics.

Selection Notes

Select this model when high DC current capacity is required alongside RF signals in the 500 MHz to 2.5 GHz band. Compare against SMA variants if space constraints exist, noting the N-type connector size. Consider thermal management requirements given the high current rating. Validate impedance matching needs for the specific application frequency.

Part Context

Pasternack produces a range of bias tees for various RF applications. The PE1618 belongs to their signal conditioning line, specifically utilizing N-type connectors. It complements other models like the PE1617, which uses SMA connectors but typically handles lower power levels. This part fits into broader RF subsystem designs requiring combined power and signal delivery.

Replacement Considerations

Direct substitutes may include other N-type bias tees from Pasternack with similar frequency and current ratings. Verify connector gender and pin configuration. Ensure replacement parts meet the same 7000mA and 100V DC specifications. Cross-reference with generic N-type bias tees only if electrical parameters are identical.
