Product Detailed Parameters
- Description：10 MHz to 40 GHz 2.92mm Bias Tee
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：10MHz ~ 40GHz
- RF Type：General Purpose
- Secondary Attributes：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

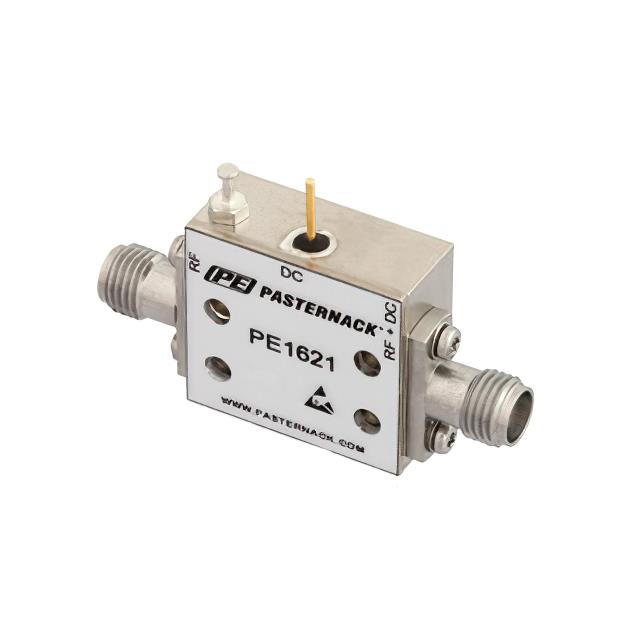

The PE1621 is a 2.92mm bias tee manufactured by Pasternack, designed for signal conditioning applications within the 10 MHz to 40 GHz frequency range. It supports a maximum DC current rating of 250 mA and a voltage limit of 16 Volts DC. The component integrates RF and DC paths into a single compact module, utilizing the 2.92mm connector interface to ensure reliable high-frequency performance in demanding electronic systems.
Feature Summary
- Integrates RF and DC signal paths into a single compact module
- Operates across a wide frequency spectrum from 10 MHz to 40 GHz
- Utilizes robust 2.92mm connector interface for high-frequency reliability
Applications
- High-frequency test and measurement equipment
- Wireless communication infrastructure components
- RF circuit biasing requirements
Procurement Notes
Verify the specific datasheet version and manufacturer documentation to confirm technical specifications before integration. Ensure compatibility with existing system voltage and current limits. Check for any regional shipping restrictions or availability constraints associated with the distributor channel prior to finalizing procurement plans.
Selection Notes
Select this component when a wide bandwidth up to 40 GHz is required for biasing applications. The 2.92mm interface ensures mechanical and electrical compatibility with standard high-frequency setups. Confirm that the 250 mA current and 16 V voltage ratings meet the specific power delivery needs of the target RF circuit design.
Part Context
This part belongs to Pasternack's signal conditioning product line, specifically focusing on bias tees. It serves as a critical interface component for combining or separating RF signals from DC power supplies in high-frequency environments, supporting the broader ecosystem of RF wireless miscellaneous modules.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official manufacturer channels for potential alternatives or cross-reference options based on specific interface and performance requirements.
