PE1628

$1,007.76

Description：10 MHz to 6 GHz N Broadband Bias
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:1feec834f39c Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10 MHz to 6 GHz N Broadband Bias
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Bias Tee
Frequency：10MHz ~ 6GHz
RF Type：General Purpose
Secondary Attributes：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE1628

Overview

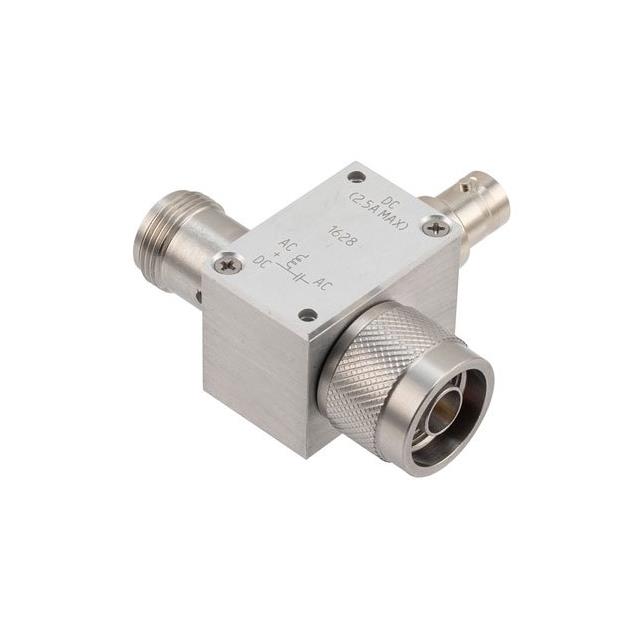

The Pasternack PE1628 is an N-type broadband bias tee designed for RF and wireless applications. It operates within a frequency range of 10 MHz to 6 GHz. The device features a male output connector interface. It is rated to handle up to 2.5 Amps of current and supports voltages up to 100 Volts. This component functions as a three-port network, enabling the injection or extraction of DC bias onto RF signals without disrupting the signal path.

Feature Summary

Provides broadband DC biasing capability across a wide frequency spectrum
Features a robust N-type male output connector interface
Supports high current loads up to 2.5 Amps
Handles DC voltages up to 100 Volts

Applications

Adjusting DC bias points of electrical components in RF circuits
General-purpose RF signal conditioning
Wireless communication system instrumentation

Procurement Notes

Verify the specific connector gender and polarity requirements against your system design before procurement. Confirm that the 100V and 2.5A ratings exceed your operational limits. Ensure the N-type male interface matches your downstream equipment. Check for RoHS compliance documentation if required by your manufacturing standards. Validate the 10 MHz to 6 GHz frequency range covers your application bandwidth.

Selection Notes

Select this component when a broadband bias solution is required between 10 MHz and 6 GHz. Choose the PE1628 if an N-type male output is necessary for your interconnect scheme. Consider its 2.5A current rating for powering higher-drain active devices. Ensure the 100V voltage limit aligns with your bias supply capabilities. Verify compatibility with existing RF infrastructure using N-type connectors.

Part Context

The PE1628 belongs to Pasternack's family of RF bias tees, which are essential for integrating DC power into RF signal paths. These devices allow for the independent control of DC bias while maintaining RF signal integrity. The N-type connector series is widely used in telecommunications and test equipment due to its durability and performance at higher frequencies.
