PE1638

Overview

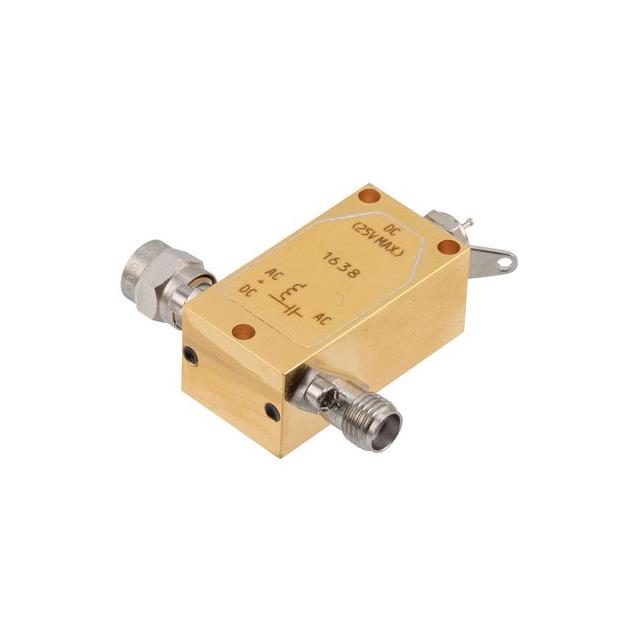

The PE1638 is a broadband bias tee from Pasternack, operating from 50 KHz to 26 GHz. It features a male SMA input connector and provides DC pin access. The device is rated for 750 MHz and 25 Volts. This three-port network allows adjustment of the DC bias point for electrical components without affecting RF signals.

Feature Summary

• Broadband operation spanning 50 KHz to 26 GHz
• Male SMA input connector configuration
• Three-port network design for signal isolation

Applications

• Adjusting DC bias points in electrical circuits
• RF signal conditioning systems
• General purpose bias tee applications requiring wide bandwidth

Procurement Notes

Verify the specific datasheet version and manufacturer specifications before procurement. Confirm that the male SMA interface and 25 Volt rating align with system requirements. Ensure compatibility with the intended frequency range up to 26 GHz.

Selection Notes

Select this component when a wide frequency range from 50 KHz to 26 GHz is required. The male SMA connector suits standard RF setups. Consider the 750 MHz and 25 Volt ratings for voltage handling capabilities.

Part Context

This part belongs to Pasternack's signal conditioning category. It functions as a general-purpose bias tee within their microwave and RF component portfolio. The device supports integration into broader RF systems requiring DC injection.

FAQ

What is the gender of the SMA connector?

The PE1638 features a male SMA input connector.

What is the maximum voltage rating?

The device is rated for 25 Volts.
