PE1640

Overview

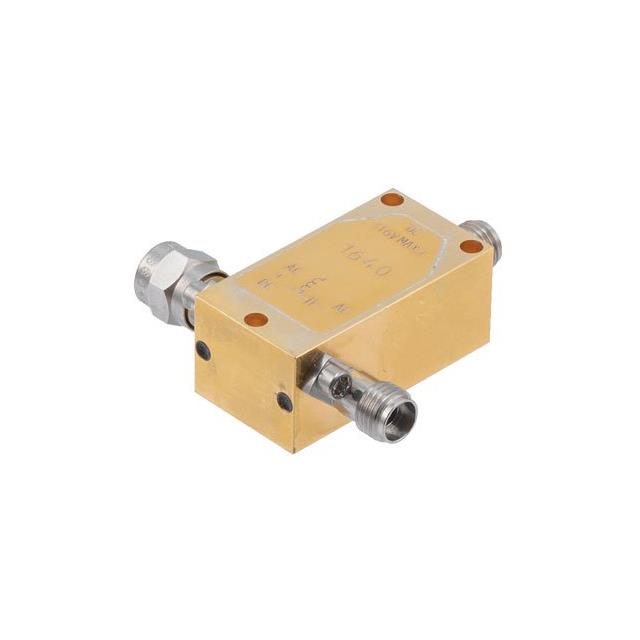

The Pasternack PE1640 is a broadband bias tee designed for RF applications, operating within a frequency range of 12 kHz to 40 GHz. It utilizes a 2.92mm connector interface with male input configuration. The device functions as a three-port network, enabling the adjustment of DC bias points for electrical components without affecting signal integrity. It is rated for a maximum current of 150 mA and a voltage of 16 Volts DC. This component supports general-purpose RF signal conditioning tasks requiring high-frequency performance and precise bias injection capabilities.

Feature Summary

• Broadband operation spanning from low frequencies up to 40 GHz
• Three-port network architecture for independent DC and RF path management
• Male input connector configuration using 2.92mm interface standard

Applications

• Adjusting DC bias points in electrical components without signal interference
• General-purpose RF signal conditioning networks
• Integration into test and measurement setups requiring broadband bias injection

Procurement Notes

Verify the specific connector gender and interface type against project requirements before ordering. Confirm that the 150 mA current rating and 16 V voltage limit align with the target circuit's DC bias specifications. Ensure compatibility with the 12 kHz to 40 GHz operational bandwidth. Check datasheet details for thermal management and physical dimensions to confirm fit within the assembly constraints.

Selection Notes

Select this component when a wide frequency range extending to 40 GHz is required for bias injection. The 2.92mm male interface dictates mating connector compatibility. Consider the 150 mA and 16 V limits as hard constraints for the biased component. This unit is suitable for applications needing minimal signal disruption during DC bias adjustment across a broad spectrum.

Part Context

The PE1640 belongs to Pasternack's family of RF signal conditioning components. It serves as a specialized passive network tool distinct from active amplifiers or filters. Its design focuses on isolating DC power paths from RF signal paths while maintaining performance at microwave frequencies. This role is critical in systems where component biasing must be controlled independently of the RF transmission line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility based on connector type, frequency range, and electrical ratings if considering alternative manufacturers.
