PE1649

Overview

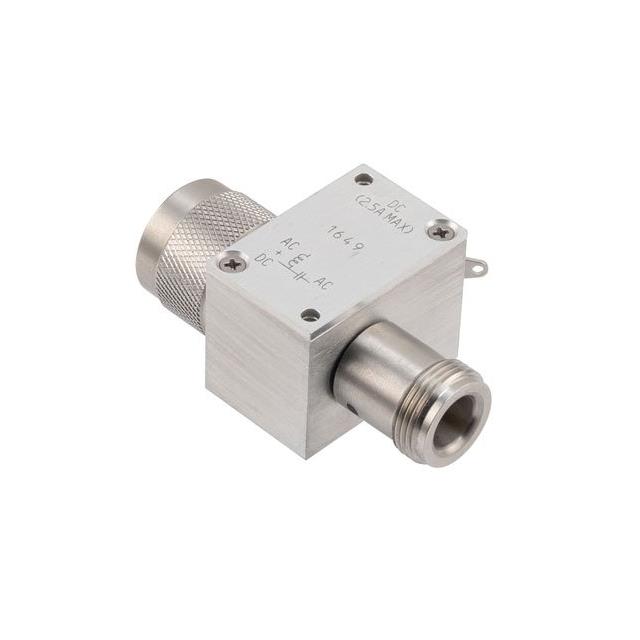

The PE1649 is a Type N 75 Ohm Bias Tee manufactured by Pasternack. It operates within a frequency range of 10 MHz to 3 GHz and features a DC pin rated for 2.5 Amps and 100 Volts. This signal conditioning component integrates RF and DC paths, allowing simultaneous transmission without interference. The unit weight is specified as part of the product attributes.

Feature Summary

• Integrates RF and DC signals through a single connector interface
• Supports 75 Ohm impedance matching for specific system requirements
• Provides high current DC bias capability up to 2.5 Amps

Applications

• Signal conditioning in RF measurement setups
• Powering active components via coaxial lines
• Integration into 75 Ohm RF test environments

Procurement Notes

Verify the specific DC pin configuration and voltage ratings against application requirements before integration. Confirm that the 2.5 Amp current rating aligns with the power supply capabilities of the target circuit. Ensure compatibility with 75 Ohm system impedance to maintain signal integrity. Review the official datasheet for detailed electrical specifications and mechanical dimensions.

Selection Notes

Select this component when a 75 Ohm interface is required for biasing active devices within the 10 MHz to 3 GHz band. Consider the 2.5 Amp current limit when designing power delivery circuits. Evaluate the physical connector type to ensure mechanical fit within the assembly. Compare against other bias tees if different impedance or frequency ranges are needed.

Part Context

This component belongs to Pasternack's signal conditioning portfolio, specifically designed for applications requiring combined RF and DC transmission. It addresses the need for efficient power delivery to active RF components without additional cabling. The design supports standard Type N connectors adapted for 75 Ohm systems.
