PE1656

Overview

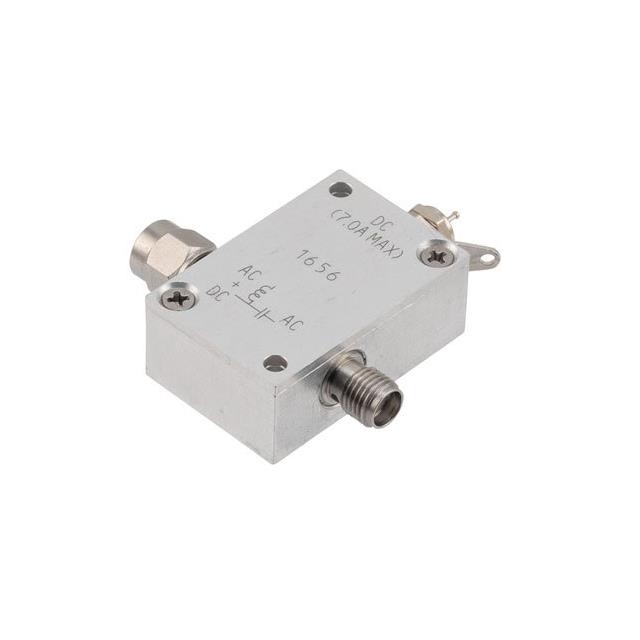

The Pasternack PE1656 is a broadband bias tee designed for RF and wireless applications, operating within a frequency range of 1 GHz to 6 GHz. It features SMA connectors with a male gender on the RF port and provides a 50 Ohm impedance for both RF and DC ports. The component is rated for high current handling, supporting up to 7 Amps at 100 Volts on the DC pin. This configuration allows for simultaneous signal transmission and DC power injection without interference, making it suitable for active device biasing in high-frequency circuits.

Feature Summary

• Provides simultaneous RF signal transmission and DC power injection via dedicated ports
• Supports high current ratings of 7 Amps and 100 Volts on the DC pin
• Features SMA connectors with male gender on the RF port for reliable interfacing

Applications

• Biasing active RF components such as amplifiers and oscillators
• RF test and measurement setups requiring combined signal and power delivery
• Wireless communication systems integrating DC-powered RF modules

Procurement Notes

Verify that the specific order matches the PE1656 designation to ensure correct SMA connector gender and frequency range compatibility. Confirm that system requirements align with the 7 Amp and 100 Volt DC ratings. Check for RoHS compliance status if environmental regulations apply to the deployment environment.

Selection Notes

Select this component when a 1 GHz to 6 GHz operational bandwidth is required alongside high-current DC biasing capabilities. Ensure the mating equipment supports SMA male connectors on the RF side. Consider thermal management if continuous operation near the maximum current rating is anticipated.

Part Context

The PE1656 belongs to Pasternack's line of RF bias tees, which facilitate the integration of DC power into RF signal paths. These devices are essential for powering active components within passive signal chains, maintaining signal integrity across the specified microwave frequency band while preventing DC leakage into sensitive RF sources.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
