PE1658

Overview

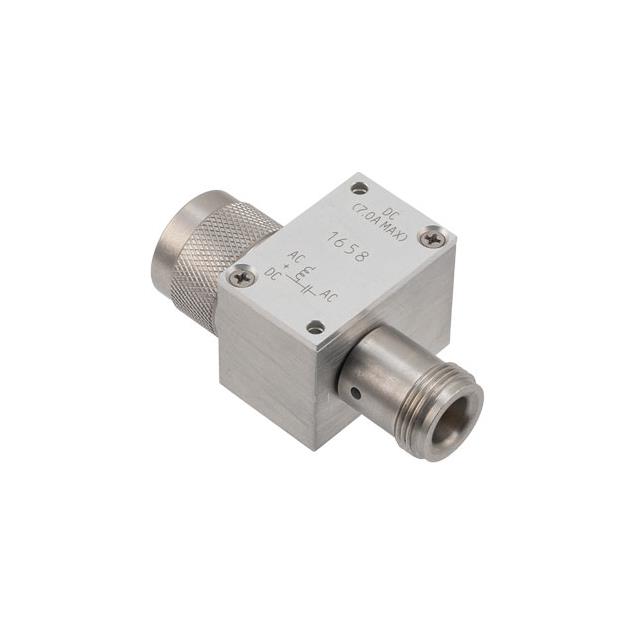

The Pasternack PE1658 is a high-current bias tee designed for RF applications. It operates within a frequency range of 0.5 GHz to 2 GHz and utilizes N-type connectors. The device supports a maximum current of 7 Amps, a maximum voltage of 100 V, and handles up to 50 W of power. It functions as a three-port network to adjust DC bias points without affecting RF signals. The unit is rated for temperatures between -55°C and 105°C and features a chassis-mount design.

Feature Summary

• Provides DC bias injection into RF paths while maintaining signal integrity
• Supports high current loads up to 7 Amps for demanding applications
• Operates reliably across extended temperature ranges from -55°C to 105°C
• Features robust N-type connector interface for secure integration

Applications

• Adjusting DC bias points in electrical components without signal interference
• Chassis-mount installation in RF test and measurement equipment
• High-reliability RF system integration requiring stable bias networks

Procurement Notes

Verify the specific datasheet version for the PE1658 to confirm mechanical dimensions and connector specifications. Ensure that the required current rating of 7 Amps and voltage limit of 100 V align with your circuit design parameters. Confirm compatibility with N-type mating connectors before procurement. Check for any updated environmental certifications or material compliance data relevant to your region.

Selection Notes

Select the PE1658 when a broadband bias tee is required for frequencies between 0.5 GHz and 2 GHz. Its high current capacity makes it suitable for powering active devices needing significant DC input. The chassis-mount form factor aids in stable thermal management and secure physical installation. Consider its 50 W power handling capability when designing systems with higher signal levels.

Part Context

This component belongs to Pasternack's line of RF bias tees, which are passive three-port networks. These devices combine DC and RF signals on a single port or separate them for independent processing. The PE1658 specifically addresses applications requiring high current stability and wide bandwidth within the UHF and SHF ranges.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
