Product Detailed Parameters
- Description：100 MHz to 110 GHz Ultra-Wide Ba
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：100MHz ~ 110GHz
- RF Type：General Purpose
- Secondary Attributes：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

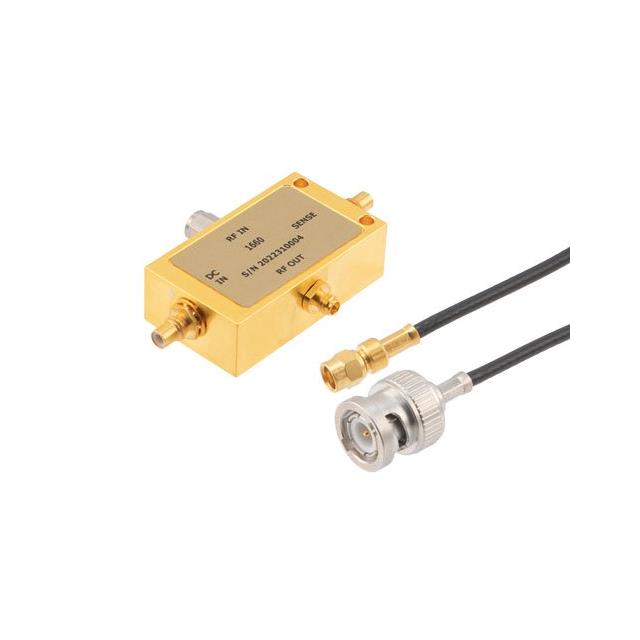

The Pasternack PE1660 is a general-purpose RF bias tee module designed for ultra-wideband applications. It operates within a frequency range of 100 MHz to 110 GHz, enabling signal integration across microwave and millimeter-wave spectrum segments. This component facilitates the simultaneous transmission of DC power and RF signals through a single port configuration. The unit supports high-frequency data transmission while maintaining electrical isolation between power and signal paths. It serves as a critical interface element in test setups requiring combined biasing and RF connectivity.
Feature Summary
- Ultra-wideband operation spanning from 100 MHz to 110 GHz
- General-purpose design for integrating DC bias with RF signals
- Single-port functionality for combined power and signal transmission
Applications
- RF test and measurement instrumentation
- Millimeter-wave component characterization
- Wideband amplifier biasing networks
Procurement Notes
Verify the specific datasheet version and pinout configuration before integration. Confirm that the operating frequency range aligns with the target application requirements up to 110 GHz. Ensure mechanical compatibility with existing fixture interfaces. Check for any specific handling instructions regarding high-frequency connector integrity during installation.
Selection Notes
Select this component when an ultra-wideband bias solution is required extending into millimeter-wave frequencies. It is suitable for applications needing a single-point connection for both DC power injection and RF signal passage. Consider the physical form factor and connector types relative to the host system interface constraints.
Part Context
This module belongs to Pasternack's portfolio of RF miscellaneous integrated circuits and modules. It complements their broader range of RF cable assemblies and connectors by providing active signal conditioning components. The product line focuses on supporting complex RF system architectures requiring precise signal management.
