PE19XP5007

Overview

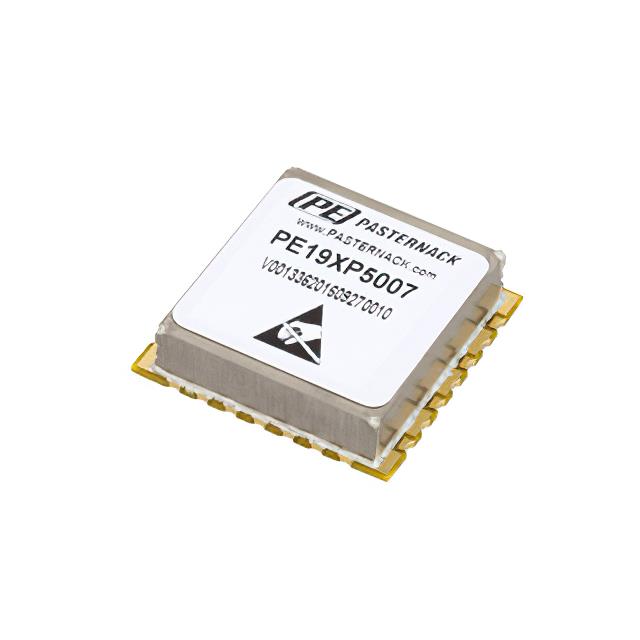

The PE19XP5007 is a surface-mount phase-locked crystal oscillator manufactured by Pasternack. It operates at a frequency of 4 GHz and utilizes a 10 MHz external reference input. The device achieves a phase noise performance of -98 dBc/Hz. It is housed in a compact 0.9-inch package designed for SMT integration.

Feature Summary

• Surface mount construction for automated assembly
• Phase-locked loop architecture with external reference capability
• High-frequency operation at 4 GHz

Applications

• Wireless communication systems requiring stable RF sources
• Test and measurement instrumentation
• Satellite communication equipment

Procurement Notes

Verify the specific datasheet version for the PE19XP5007 to confirm exact pinout configurations and electrical tolerances. Ensure compatibility with the 10 MHz external reference signal requirements before integration. Check for any RoHS compliance documentation if required for your manufacturing process.

Selection Notes

Select this component when a high-frequency 4 GHz output is required in a surface-mount form factor. The 10 MHz external reference input allows for synchronization with other system clocks. Consider the -98 dBc/Hz phase noise specification against system sensitivity requirements.

Part Context

This part belongs to the Phase-Locked Oscillators series from Pasternack, categorized under Specialty Oscillators and PLLs. It serves as an RF IC module providing precise frequency generation for wireless and microwave applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
