PE1WAN187-10NF

Antennas RF Overview

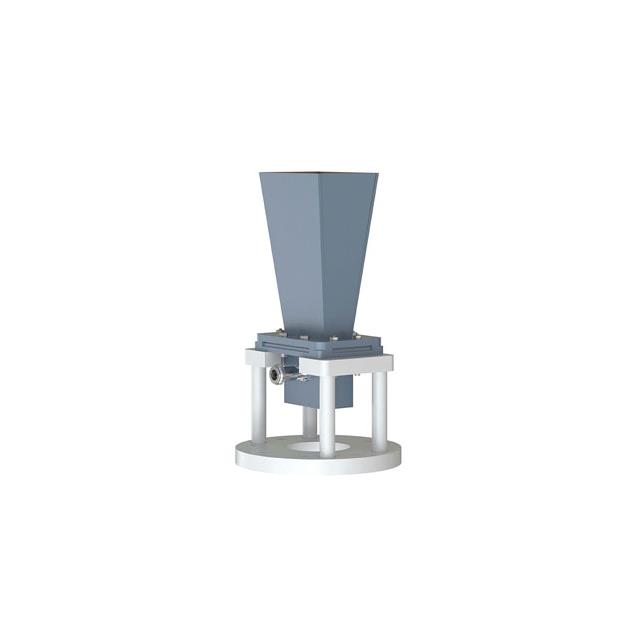

The PE1WAN187-10NF is a standard gain horn antenna manufactured by Pasternack, designed for WR-187 waveguide applications. It features an N Female connector interface and provides a nominal gain of 10 dBi. The unit is constructed for bracket mounting, facilitating integration into test setups or communication systems requiring directional radiation patterns in the corresponding frequency band.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-187 waveguide dimensions
• N Female connector interface for coaxial cable attachment
• Bracket mount configuration for secure installation

Antennas RF Applications

• RF measurement and testing environments
• Wireless communication system links
• Antenna characterization setups

Antennas RF Procurement Notes

Verify the specific datasheet for the PE1WAN187-10NF to confirm exact frequency range and power handling capabilities before procurement. Ensure compatibility with WR-187 waveguide standards and N-type mating connectors. Confirm environmental ratings if outdoor deployment is intended.

Antennas RF Selection Notes

Select this model when a fixed-gain directional source is required for WR-187 bands. The N Female connector simplifies interconnects compared to waveguide-to-coax adapters. Consider the bracket mount feature for stable positioning during static measurements.

Antennas RF Part Context

This component belongs to Pasternack's RF Antenna product line, specifically within their standard gain horn series. These antennas are engineered to provide predictable radiation patterns and consistent gain values, serving as reference sources in calibrated RF test ranges and field strength measurements.

Antennas RF Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Alternative solutions may require custom waveguide horns with equivalent gain and connector types, necessitating careful verification of mechanical and electrical specifications.
