PE51239

$65.41

Description：5DBI CEILING 698-4200MHZ 2X4.3
Series：-
Mfr：Pasternack
Package：Bag

SKU:4daf7e0dc432 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51239 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 5DBI CEILING 698-4200MHZ 2X4.3. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51239

Description：5DBI CEILING 698-4200MHZ 2X4.3
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：752MHz, 883MHz, 2.205GHz, 3.8GHz
Frequency Range：704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz
Antenna Type：Flat Panel
Number of Bands：4
VSWR：2
Return Loss：-
Gain：5dBi, 6dBi, 7dBi, 7dBi
Features：Cable - 300mm
Termination：4.3/10 - Female (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Wall Mount
Height (Max)：2.440" (61.98mm)
Applications：5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M
Power - Max：100 W

Antennas RF datasheet and documents for PE51239

PE51239

Antennas RF Overview

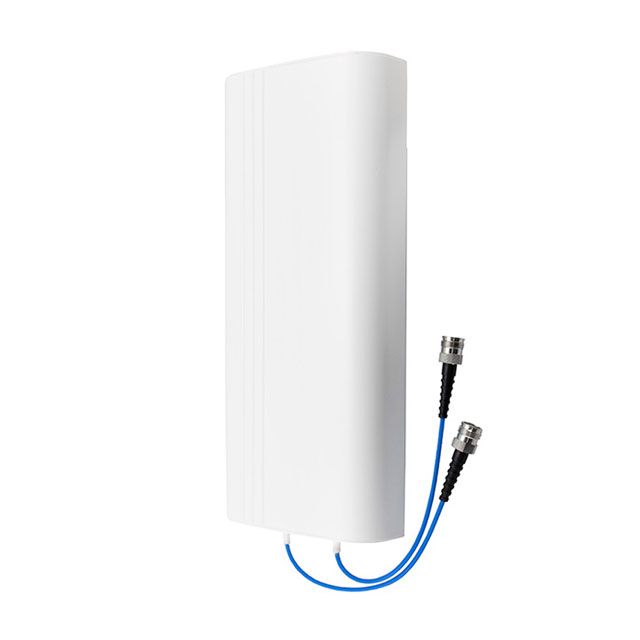

The Pasternack PE51239 is a low PIM rated VH-pol MIMO panel antenna designed for wideband cellular applications. It operates across frequency ranges of 698-960 MHz, 1710-2700 MHz, and 3400-4200 MHz. The unit features a 5 dBi gain and utilizes two 4.3-10 female connectors. It supports technologies including 5G, CDMA, GSM, LTE, LPWAN, and LoRA. The antenna is constructed for wall mounting and offers robust performance in multi-input multi-output configurations.

Antennas RF Feature Summary

Supports multiple wireless standards including 5G, LTE, and LPWAN
Low PIM rating ensures signal integrity in dense networks
VH-pol configuration optimizes MIMO performance

Antennas RF Applications

Cellular network infrastructure deployment
Wideband indoor distribution systems
MIMO antenna array integration

Antennas RF Procurement Notes

Verify the specific connector type and mounting hardware compatibility with existing site infrastructure before ordering. Confirm that the operational frequency bands align precisely with local regulatory requirements and carrier specifications. Ensure the installation environment supports the physical dimensions and weight of the panel antenna to maintain structural stability.

Antennas RF Selection Notes

Select this model when a single unit must cover multiple cellular bands without requiring separate antennas for each frequency range. The 4.3-10 connector interface is suitable for modern small cell and distributed antenna systems. Consider the wall-mount form factor for fixed installations where space efficiency and aesthetic integration are priorities.

Antennas RF Part Context

This component belongs to Pasternack's RF Antennas category, specifically within the cellular and wideband product lines. It is engineered for high-performance communication environments requiring reliable coverage across diverse frequency spectrums. The part number identifies a specific configuration optimized for modern mobile network deployments.
