PE51252

Antennas RF Overview

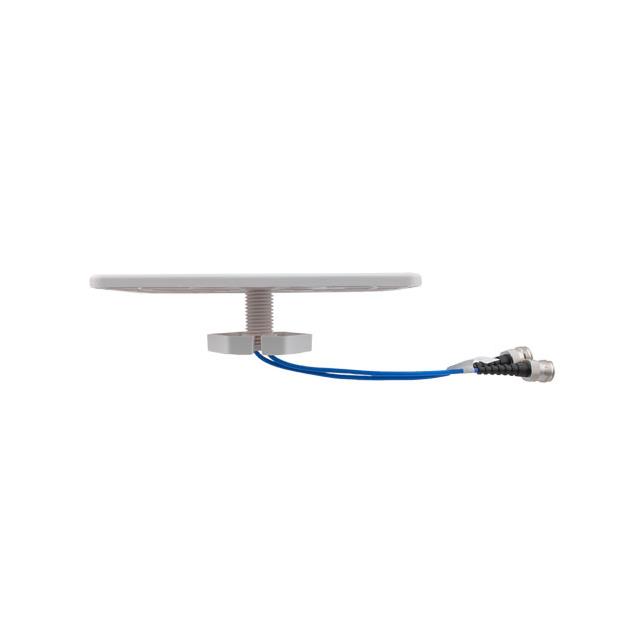

The Pasternack PE51252 is an indoor Distributed Antenna System (DAS) ceiling omni-directional antenna designed for low PIM applications. It operates within a frequency range of 698 MHz to 4200 MHz and provides a gain of 5 dBi. The unit features two 4.3-10 female connectors for signal input and output. This component is engineered for integration into indoor wireless coverage infrastructure.

Antennas RF Feature Summary

• Omni-directional radiation pattern suitable for ceiling mounting
• Low Passive Intermodulation (PIM) performance characteristics
• Dual 4.3-10 female connector interface

Antennas RF Applications

• Indoor Distributed Antenna Systems (DAS)
• Wireless network coverage enhancement
• Commercial building signal distribution

Antennas RF Procurement Notes

Verify the specific datasheet version and regulatory compliance documentation, such as RoHS status, prior to procurement. Confirm that the 4.3-10 connector type matches existing system requirements. Ensure the operating frequency range covers all necessary bands for the intended deployment environment.

Antennas RF Selection Notes

Select this model when a compact, low-PIM solution is required for indoor multi-band deployments. The dual connector design facilitates flexible cabling arrangements. Consider the 5 dBi gain profile for coverage radius requirements in typical commercial ceiling installations.

Antennas RF Part Context

This component belongs to the category of RF antennas specifically tailored for DAS environments. It addresses the need for reliable signal distribution in complex indoor structures where interference and signal loss are critical concerns.
