PE51MP1009

Antennas RF Overview

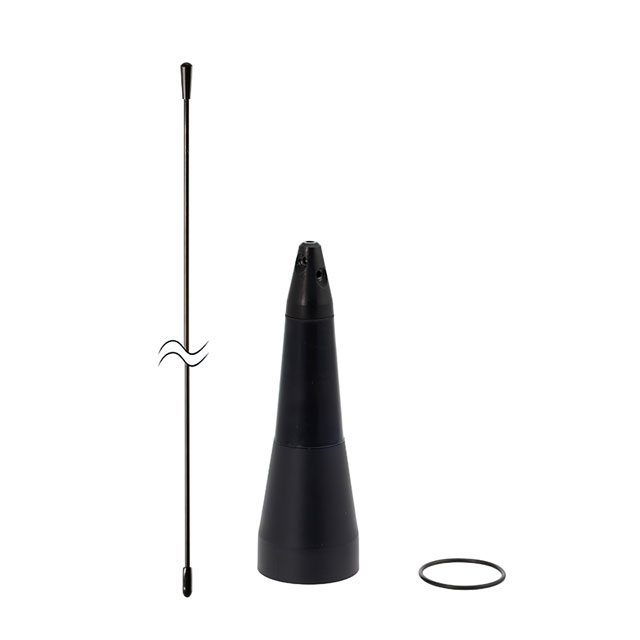

The PE51MP1009 is a vehicular RF antenna manufactured by Pasternack. It operates within the 144 MHz to 174 MHz frequency range, with a center frequency of 159 MHz. The component provides a gain of 2 dBi and utilizes an NMO mount connector for installation. This general-purpose whip antenna is designed for ground-independent performance in mobile communication applications.

Antennas RF Feature Summary

• Ground-independent tunable poly spring design
• NMO magnetic mount connector interface
• General-purpose vehicular whip configuration

Antennas RF Applications

• Vehicular radio systems
• Mobile communication equipment
• Marine communication setups

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to integration. Confirm that the NMO mount type matches the vehicle or marine fixture requirements. Ensure the 144-174 MHz operational band aligns with the intended transmission frequencies for optimal signal integrity.

Antennas RF Selection Notes

Select this model when a ground-independent solution is required for mobile platforms. The NMO mount ensures secure attachment to metal surfaces. Consider the 2 dBi gain level for standard range requirements within the specified VHF band without needing high-gain alternatives.

Antennas RF Part Context

This part belongs to Pasternack's RF antenna portfolio, specifically targeting mobile and vehicular markets. It serves as a general-purpose transmission element for two-way radio systems operating in the VHF spectrum, offering reliable connectivity for emergency, commercial, or recreational mobile communications.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting hardware and coaxial cable assemblies before considering alternative vendors or models.
