PE51OM1005

Antennas RF Overview

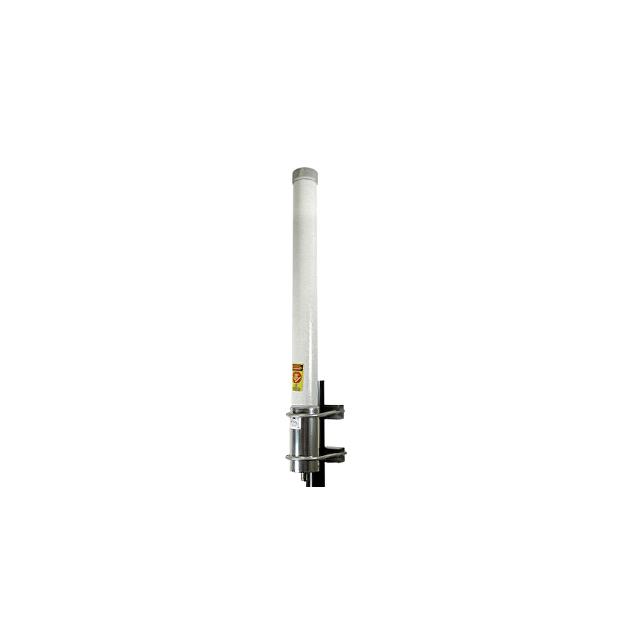

The Pasternack PE51OM1005 is a dual-band omnidirectional antenna designed for operation at 2.4 GHz and 5.8 GHz frequencies. It provides a gain of 9 dBi across both bands, ensuring consistent signal performance for wireless applications. The component features an integrated NMO mount base, facilitating secure attachment to magnetic surfaces or vehicle roofs without requiring additional hardware. This design supports reliable connectivity in mobile and fixed installations where space constraints or mounting flexibility are critical factors.

Antennas RF Feature Summary

• Dual-band capability supporting simultaneous 2.4 GHz and 5.8 GHz operations
• Integrated NMO mount base for direct magnetic surface attachment
• Omnidirectional radiation pattern for uniform signal distribution

Antennas RF Applications

• Mobile radio communications systems
• Vehicle-mounted wireless networking equipment
• Dual-band IoT sensor deployments

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the official datasheet before ordering, as variations may exist within the product line. Confirm that the NMO mount interface matches the intended installation surface. Ensure environmental ratings meet the deployment conditions. Cross-reference the manufacturer's part number with authorized distributor catalogs to confirm current availability and technical specifications.

Antennas RF Selection Notes

Select this model when dual-band coverage at 2.4 GHz and 5.8 GHz is required with moderate gain. The integrated NMO mount simplifies installation on vehicles or metal structures compared to antennas requiring separate brackets. Consider the physical dimensions and weight if portability is a concern. Verify compatibility with existing RF connectors and cabling infrastructure to ensure seamless integration into the system architecture.

Antennas RF Part Context

This component belongs to Pasternack's omnidirectional antenna series, which focuses on versatile mounting solutions for various communication needs. The PE51OM1005 specifically addresses the demand for dual-band performance in compact form factors. It complements other antennas in the lineup by offering magnetic mounting convenience alongside standard RF connectivity options for widespread industrial use.
