PE6202-100PK

Overview

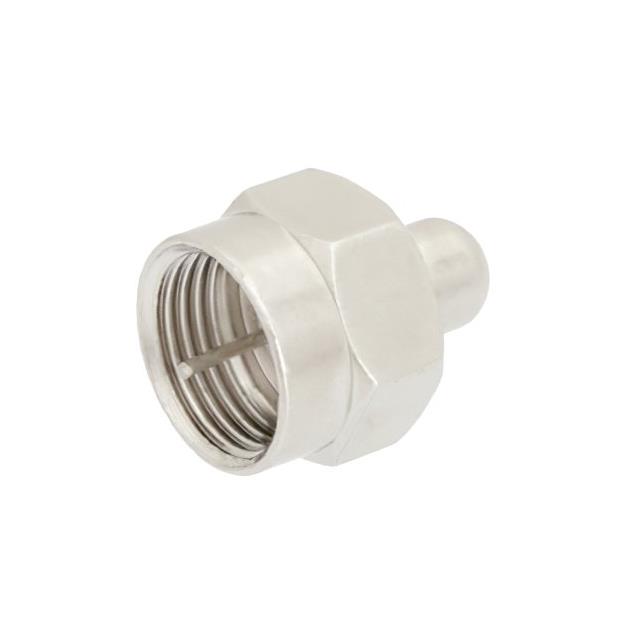

The PE6202-100PK is a pack of Pasternack RF terminators designed for 75 Ohm systems. Each unit features an F Male input connector and is rated for 0.25 Watt power handling up to 3 GHz frequency range. The components are HD compatible and constructed with nickel-plated zinc materials.

Feature Summary

• Provides a matched 75 Ohm load termination for RF signal paths
• Supports operation at frequencies up to 3 GHz
• Rated for continuous power dissipation of 0.25 Watt
• Features an F Male connector interface compatible with standard coaxial cables

Applications

• Terminating unused ports on 75 Ohm RF test equipment
• Preventing signal reflections in video distribution networks
• Load matching for 75 Ohm transmission line testing
• Impedance stabilization in broadcast signal monitoring setups

Procurement Notes

Verify the specific package quantity matches the '100PK' designation, as datasheets may list individual part numbers like PE6202. Confirm the connector type is strictly F Male and impedance is 75 Ohm. Check RoHS compliance status directly from the manufacturer's current documentation before ordering.

Selection Notes

Select this component when a precise 75 Ohm termination is required for frequencies below 3 GHz. Ensure the application does not exceed the 0.25 Watt power rating. Compare against PE6202 if single-unit purchases are sufficient. Verify HD compatibility requirements for the specific connector housing dimensions.

Part Context

This part belongs to the Pasternack RF Terminators series, specifically engineered for 75 Ohm applications. It serves as a passive component to absorb RF energy, preventing standing waves in transmission lines. The product is distinct from 50 Ohm variants and high-power loads, focusing on low-power, high-frequency stability in video and broadcast contexts.

Replacement Considerations

Direct substitutes include the individual PE6202 unit or other 75 Ohm F Male terminators from Pasternack. Verify that any replacement maintains the 3 GHz upper frequency limit and 0.25 Watt power rating. Cross-reference connector gender and impedance to ensure system compatibility.
