PE6207

Overview

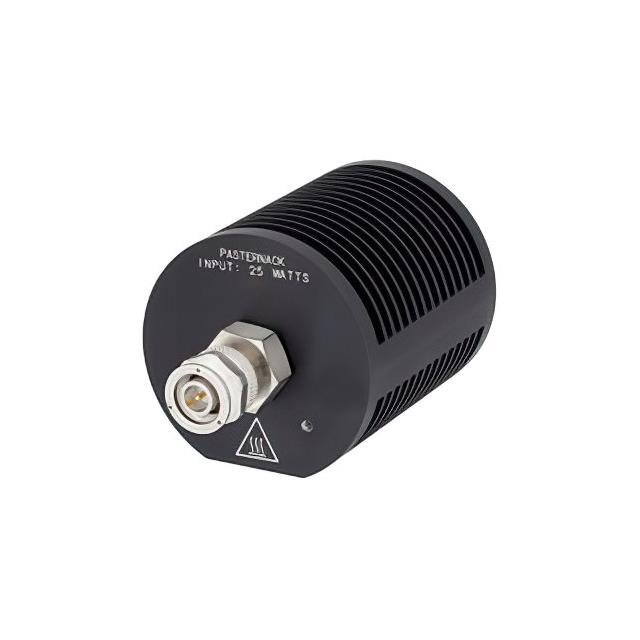

The PE6207 is a medium power RF load termination manufactured by Pasternack. It features a TNC male input connector and is designed for operation up to 18 GHz. The component has a 50 Ohm impedance and an average maximum VSWR of 1.6:1. It handles 25 Watts of power using a round body constructed from black anodized aluminum with an integrated heatsink.

Feature Summary

• TNC male coaxial input interface
• Black anodized aluminum round body construction
• Integrated heatsink design for thermal management

Applications

• RF system testing and measurement
• Signal source protection
• Power absorption in transmission lines

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and thermal resistance values. Ensure the operating environment temperature aligns with the heatsink's dissipation capabilities. Confirm that the TNC connector type matches the system requirements. Check for any regional distribution restrictions or supply limitations before ordering.

Selection Notes

Select this model when a 25 Watt capacity at frequencies up to 18 GHz is required. The TNC male interface dictates compatibility with mating connectors. The aluminum heatsink body suits applications needing passive cooling. Consider physical size constraints due to the round body design compared to flat-mount alternatives.

Part Context

This component belongs to Pasternack's RF termination and load series. It serves as a standard 50 Ohm matched load for high-frequency applications. The product line includes various connector types and power ratings, with the PE6207 specifically addressing medium-power needs via the TNC interface.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
