PE6216

Overview

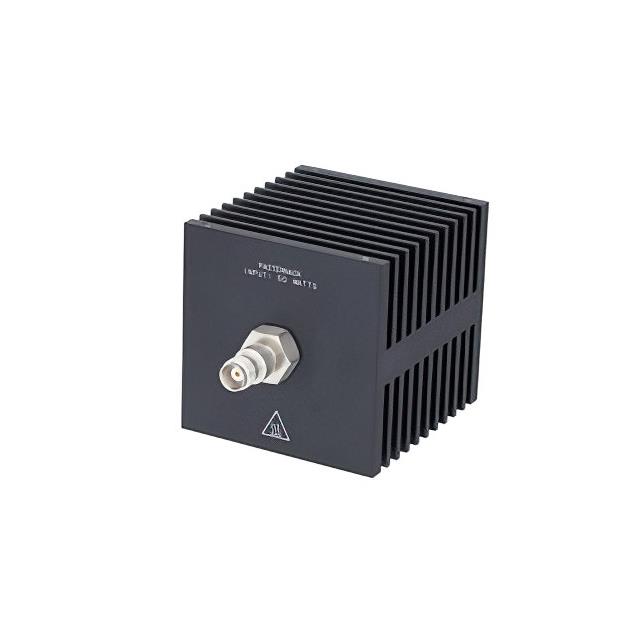

The PE6216 is a medium power RF load manufactured by Pasternack, designed for general-purpose applications up to 18 GHz. It features a TNC female connector and provides a 50-watt power handling capacity. The component serves as a termination or dummy load for radio frequency circuits. Key specifications include an operating frequency range of 0 Hz to 18 GHz and a power rating of 50 watts. The unit weight is not explicitly stated in the provided summary data, but it is classified under RF IC Termination products.

Feature Summary

• Provides a stable 50-ohm termination for RF signals
• Supports continuous power dissipation up to 50 watts
• Operates effectively across a broad frequency spectrum from DC to 18 GHz
• Utilizes a TNC female interface for secure connection

Applications

• RF signal source testing and characterization
• Power amplifier output termination
• General-purpose RF circuit loading
• Vector network analyzer calibration references

Procurement Notes

Verify the specific datasheet version for thermal management requirements and maximum operating temperature limits. Confirm that the TNC female connector type matches the system interface needs. Ensure the application does not exceed the 50-watt continuous power rating to prevent damage. Check for any RoHS compliance documentation if required for the specific project standards.

Selection Notes

Select this component when a robust 50-watt termination is required for frequencies extending to 18 GHz. The TNC female interface is suitable for applications requiring secure, threaded connections. Consider the physical size and heat dissipation capabilities relative to the enclosure design. This model is appropriate for medium-power scenarios where higher wattage loads are unnecessary.

Part Context

The PE6216 belongs to Pasternack's line of RF loads and terminations. These components are essential for absorbing RF energy without reflection, ensuring accurate measurements and protecting sensitive equipment. The series includes various connectors and power ratings to suit different RF engineering needs.

Replacement Considerations

Direct substitutes may include other 50-watt TNC female RF loads from Pasternack or other manufacturers with identical frequency and power specifications. Verify connector gender, mating dimensions, and VSWR performance before substitution.

FAQ

What is the maximum operating frequency for the PE6216?

The PE6216 is rated for operation up to 18 GHz.

What type of connector does the PE6216 use?

It features a TNC female connector.

Is the PE6216 suitable for high-power applications?

It is classified as a medium power load with a 50-watt rating, suitable for moderate RF power levels.
