PE6TR1160

Overview

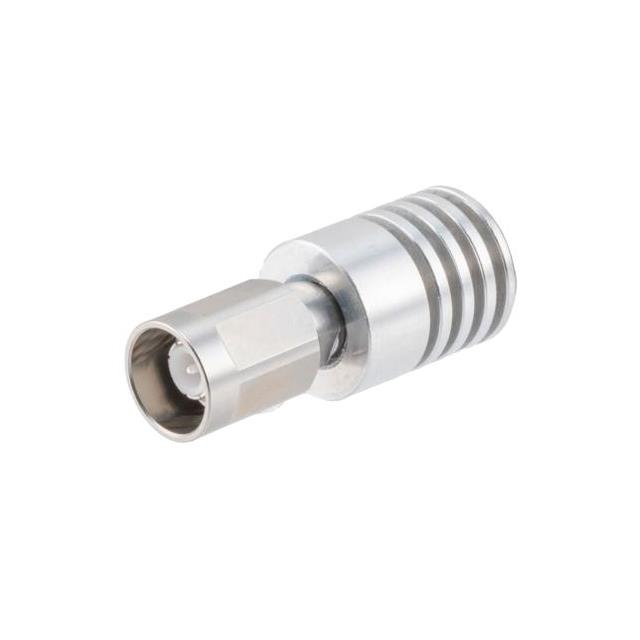

The Pasternack PE6TR1160 is a coaxial RF terminator designed for high-frequency applications. It features an NEX10 male input connector and an aluminum body construction. The component provides a 5-watt power handling capacity and operates up to a maximum frequency of 6 GHz. This termination device ensures signal integrity by absorbing reflected energy in RF test and measurement setups.

Feature Summary

• Provides stable 50-ohm impedance termination for RF circuits
• Utilizes durable aluminum housing for thermal management
• Engineered with NEX10 male interface for secure connection

Applications

• RF test and measurement equipment terminations
• Signal generator output loading
• Vector network analyzer port matching

Procurement Notes

Verify the specific datasheet version for the PE6TR1160 to confirm mechanical dimensions and material specifications. Ensure compatibility with NEX10 mating connectors in your assembly. Check for any RoHS compliance documentation if required for your manufacturing standards. Confirm the operating temperature range aligns with your environmental conditions before finalizing procurement.

Selection Notes

Select the PE6TR1160 when a robust 5-watt termination is required for frequencies up to 6 GHz. The NEX10 interface offers superior performance compared to standard N-type connectors at higher frequencies. Consider the aluminum body for better heat dissipation during continuous wave testing. Ensure the male configuration matches your female receptacle requirements.

Part Context

This component belongs to Pasternack's series of coaxial RF terminators. These devices are essential for maintaining system stability and protecting sensitive equipment from reflected power. The PE6TR1160 specifically addresses needs for moderate power handling in the microwave spectrum using the NEX10 connector standard.
