PE6TR1161

Overview

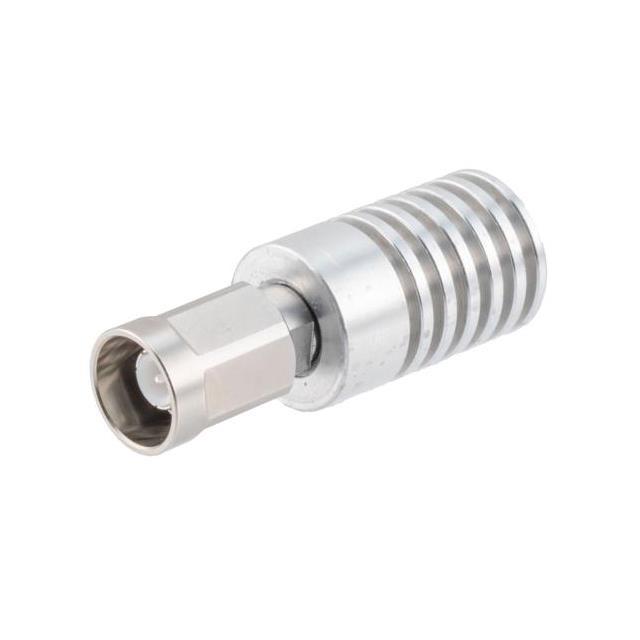

The PE6TR1161 is a 10-watt RF load termination manufactured by Pasternack. It operates from DC to 6 GHz with a NEX10 male input connector. The unit features an aluminum body and supports peak power of 100 W. Operating temperature ranges from -40°C to +75°C.

Feature Summary

• High-power dissipation capability rated at 10 watts continuous wave
• Broadband frequency performance extending up to 6 GHz
• Robust aluminum housing for thermal management
• NEX10 male interface for secure connection

Applications

• RF signal source termination
• Test and measurement equipment loads
• Power amplifier output matching
• Cable and antenna system testing

Procurement Notes

Verify the specific connector gender and interface type matches the test setup requirements. Confirm that the ambient operating environment stays within the specified -40°C to +75°C range to ensure reliable performance. Check for any required accessories or mounting hardware not included in the standard package.

Selection Notes

Select this component when a 10-watt capacity is required for frequencies up to 6 GHz. The NEX10 interface dictates compatibility with existing test fixtures. Consider the aluminum construction for heat dissipation needs in high-power applications compared to lower-rated terminations.

Part Context

This termination belongs to Pasternack's RF Load series, designed for general-purpose RF testing. It provides a matched load to absorb reflected energy, protecting sensitive sources. The product line includes various power ratings and connector types for diverse instrumentation needs.

Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. Ensure any alternative component matches the 10-watt power rating, 6 GHz frequency limit, and NEX10 connector interface.
