PE6TR1166

Overview

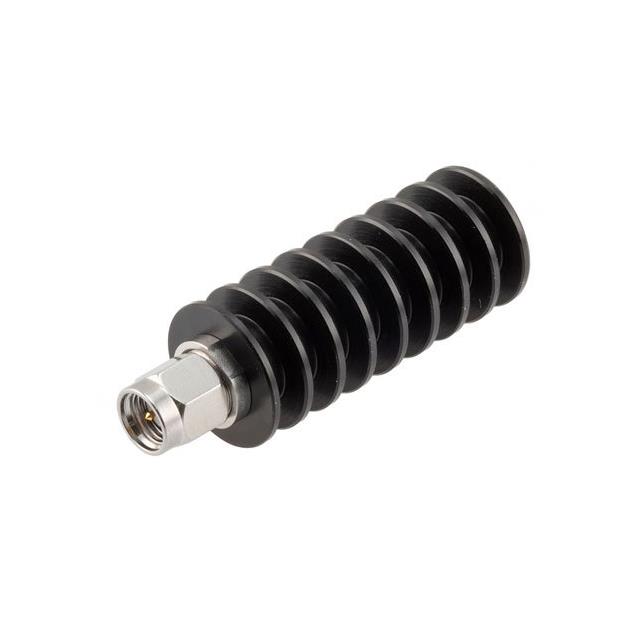

The Pasternack PE6TR1166 is a coaxial RF termination designed for high-frequency applications. It features an SMA male input connector and operates from DC to 26.5 GHz. The component handles up to 20 Watts of continuous wave (CW) power. Constructed with a black body, it provides reliable signal absorption in test and measurement environments. This unit serves as a dummy load to terminate transmission lines without reflecting signals.

Feature Summary

• Operates across a wide frequency range from DC to 26.5 GHz
• Supports high power handling up to 20 Watts CW
• Features SMA male connector interface for standard integration

Applications

• RF test and measurement setups
• Signal generator output termination
• Network analyzer port protection
• Dummy load applications in radar systems

Procurement Notes

Verify the specific datasheet version for the PE6TR1166 to confirm mechanical dimensions and thermal characteristics. Ensure compatibility with SMA male connectors in your system design. Check for any environmental certifications required for your specific deployment scenario. Confirm that the 20W CW rating aligns with your peak power requirements to prevent component damage during operation.

Selection Notes

Select this model when high-frequency performance up to 26.5 GHz is required alongside significant power dissipation capabilities. The SMA interface ensures broad compatibility with standard RF equipment. Consider the physical size and mounting options if space constraints exist within the enclosure. Evaluate thermal management needs based on continuous duty cycles at maximum power levels.

Part Context

This component belongs to the category of RF terminations and dummy loads manufactured by Pasternack. It is distinct from cable assemblies or active modules, serving purely as a passive resistive element. The product line focuses on providing stable impedance matching and signal absorption for precision radio frequency circuits and instrumentation.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer resources for cross-reference information or equivalent specifications from other vendors.
