PE6TR1176

Overview

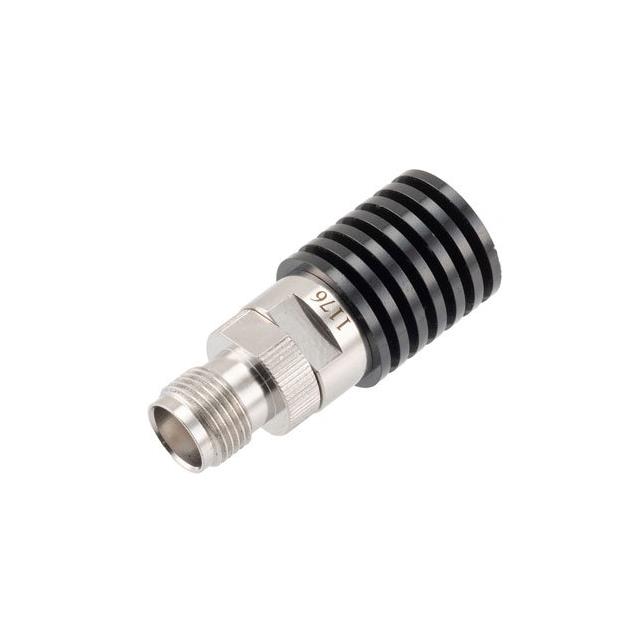

The Pasternack PE6TR1176 is a coaxial RF terminator designed for high-power applications. It features a TNC female input connector and a stainless steel body construction. The component operates as a 5-watt RF load with a frequency range extending from DC to 18 GHz. This termination device provides a stable impedance match for testing and measurement setups requiring wideband performance at elevated power levels.

Feature Summary

• Supports continuous power handling up to 5 watts
• Operates across a wide frequency spectrum from DC to 18 GHz
• Constructed with a durable stainless steel housing
• Equipped with a standard TNC female interface

Applications

• Radar system testing and calibration
• High-frequency signal source termination
• RF component characterization in laboratory environments
• Wideband amplifier output matching

Procurement Notes

Verify the specific datasheet version for the PE6TR1176 to confirm current manufacturing status and compliance certifications. Ensure that the required TNC female mating connectors are compatible with the specified interface standards. Confirm thermal management requirements for sustained operation at the rated 5-watt power level within the intended application enclosure.

Selection Notes

Select this model when an application requires termination of signals up to 18 GHz with moderate power dissipation capabilities. The choice is appropriate for systems utilizing TNC connectors where a robust metal body is preferred over plastic alternatives. Consider the physical dimensions and weight constraints relative to other available terminators in the same series if space is limited.

Part Context

This component belongs to the Pasternack Coaxial RF Terminations series, which includes various models differentiated by power rating and frequency range. The PE6TR1176 represents the higher power variant within the TNC female input category, complementing lower wattage options like the 2-watt PE6TR1172C. It serves as a specialized passive component for maintaining signal integrity in high-performance RF circuits.

Replacement Considerations

The PE6TR1176 may be substituted with the PE6TR1172C if the application allows for reduced power handling down to 2 watts while maintaining the same 18 GHz frequency range and TNC interface. Verify that the mechanical mounting and connector gender remain compatible with existing test fixtures before swapping components.
