PE6TR1185

Overview

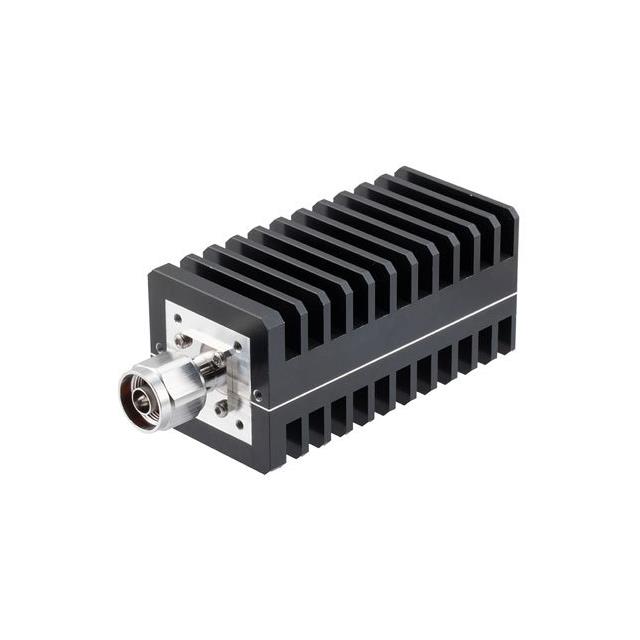

The Pasternack PE6TR1185 is a 50-watt RF load termination featuring an N-type male connector. It operates from 0 Hz to 6 GHz with a nominal 50-ohm impedance. The unit is housed in a black finish and serves as a dummy load for RF applications.

Feature Summary

• Provides a stable 50-ohm termination for RF circuits
• Rated for high power dissipation up to 50 watts
• Operates across a broad frequency range from DC to 6 GHz

Applications

• RF signal testing and measurement setups
• Radar system component characterization
• 5G infrastructure testing environments

Procurement Notes

Verify the specific datasheet for thermal management requirements, as 50-watt dissipation necessitates adequate heat sinking or airflow. Confirm connector gender and interface compatibility with your test equipment before integration. Ensure operating frequencies remain within the specified 0 Hz to 6 GHz range for optimal performance.

Selection Notes

Select this component when a robust, high-power termination is required for N-type interfaces. It is suitable for applications demanding reliable signal absorption at frequencies up to 6 GHz. Consider thermal constraints during installation to maintain performance stability under continuous wave conditions.

Part Context

This part belongs to Pasternack's RF load termination series, designed for general-purpose RF testing. It complements other terminations in the PE6TR family, offering higher power handling than standard low-power loads while maintaining precise impedance characteristics for accurate measurements.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
