PE70A9001

Overview

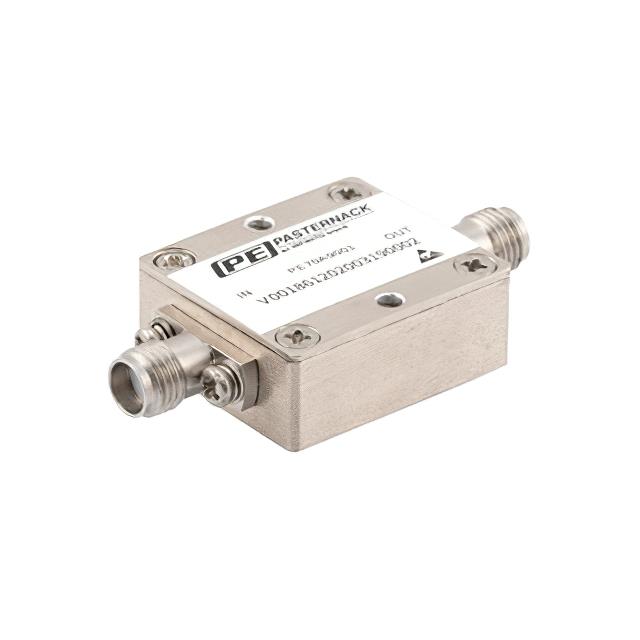

The PE70A9001 is a positive slope gain equalizer manufactured by Pasternack. It operates within a frequency range of 500 MHz to 2 GHz. The device provides gain equalization between 3.2 dB and 4.8 dB, with an insertion loss ranging from 1 dB to 2.5 dB. It utilizes SMA connectors for signal interfacing and is designed as an in-line module.

Feature Summary

• Provides positive slope gain equalization across the specified frequency band
• Utilizes SMA connector interface for direct integration into RF systems
• Functions as a linear equalizer for general-purpose RF applications

Applications

• RF system calibration requiring frequency-dependent gain correction
• Signal conditioning in wireless communication infrastructure
• Test and measurement setups needing precise gain profile adjustment

Procurement Notes

Verify the specific unit's actual insertion loss and equalization values against datasheet specifications upon receipt, as manufacturing tolerances may apply. Confirm that the SMA connector gender and cable assembly requirements match your system interface needs before installation. Ensure operating frequencies remain within the 500 MHz to 2 GHz range for optimal performance.

Selection Notes

Select this component when a positive slope equalization characteristic is required to compensate for system losses that increase with frequency. Consider the 500 MHz to 2 GHz operational bandwidth and SMA connectivity when designing the RF chain. Evaluate whether the 3.2 to 4.8 dB equalization range meets the specific gain compensation requirements of the application.

Part Context

This component belongs to Pasternack's portfolio of RF and wireless gain equalizers. It is categorized as a linear equalizer designed for general-purpose use. The product status is active, indicating ongoing availability and support from the manufacturer for integration into various RF circuit designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing system parameters if considering alternative equalizer models.
