Product Detailed Parameters
- Description：Positive Slope Equalizer, 1 GHz
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Linear Equalizer
- Frequency：1GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

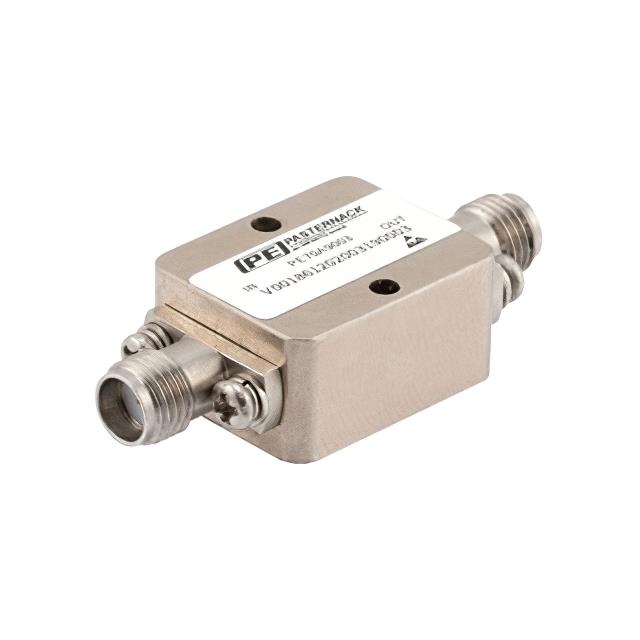

The PE70A9003 is a positive slope equalizer module manufactured by Pasternack, designed for broadband applications spanning from 1 GHz to 18 GHz. This component provides a fixed attenuation response with a specific positive slope characteristic, making it suitable for compensating frequency-dependent signal losses in high-frequency systems. It utilizes SMA connectors for interface connectivity and operates within the general-purpose RF category.
Feature Summary
- Provides a fixed positive slope attenuation response across its operational bandwidth
- Designed for broadband frequency coverage ranging from 1 GHz to 18 GHz
- Utilizes SMA connector interfaces for system integration
Applications
- Broadband RF signal conditioning
- Compensation of frequency-dependent loss in transmission lines
- General-purpose RF test and measurement instrumentation
Procurement Notes
Verify the exact SMA connector gender and mating configuration required for your specific application before procurement. Confirm that the fixed positive slope characteristic aligns with your system's equalization needs. Ensure compatibility with the 1 GHz to 18 GHz frequency range. Check for any specific mounting or thermal requirements associated with the module form factor.
Selection Notes
Select this component when a fixed positive slope equalization is required between 1 GHz and 18 GHz. It is appropriate for systems needing to counteract inherent high-frequency roll-off. Consider the SMA interface compatibility with existing infrastructure. Evaluate if the fixed nature of the equalization meets the static requirements of the design rather than variable adjustment needs.
Part Context
This part belongs to the RF Variable Attenuators series by Pasternack, specifically categorized under connectorized attenuators and equalizers. It serves as a specialized passive component for managing signal amplitude versus frequency characteristics in microwave and radio frequency circuits.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify electrical specifications against potential alternatives carefully.
