PE70A9004

Overview

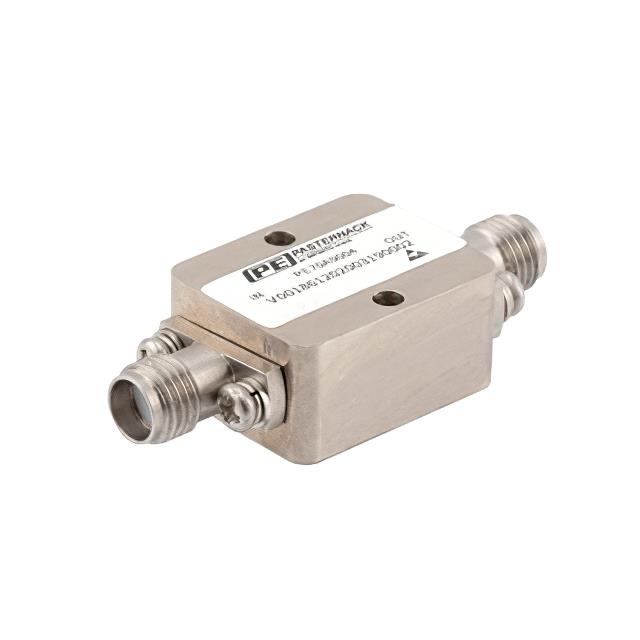

The PE70A9004 is a positive slope equalizer manufactured by Pasternack, designed for RF applications operating from 1 GHz to 18 GHz. It provides a fixed equalizing value of 5 dB with a maximum insertion loss of 1 dB. The component features field-replaceable SMA connectors and supports a maximum input power level of +30 dBm. This device is intended to compensate for frequency-dependent signal attenuation in high-frequency transmission lines.

Feature Summary

• Provides a fixed positive slope equalization of 5 dB across the operational bandwidth
• Features low insertion loss of 1 dB to maintain signal integrity
• Supports high input power handling up to +30 dBm
• Utilizes field-replaceable SMA connectors for maintenance flexibility

Applications

• Compensating for cable loss in high-frequency test and measurement setups
• Signal conditioning in wireless communication infrastructure
• RF system calibration requiring flat frequency response correction

Procurement Notes

Verify the specific datasheet version and connector gender configuration prior to ordering, as SMA variants may differ. Confirm that the fixed 5 dB gain characteristic aligns with the system's required equalization profile. Ensure the operating environment temperature range is compatible with the component specifications. Cross-reference the part number with official Pasternack documentation to confirm current production status and availability constraints.

Selection Notes

Select this model when a fixed positive slope compensation is required between 1 GHz and 18 GHz. The 5 dB equalizing value addresses specific channel attenuation profiles. Consider the +30 dBm power rating for high-power RF paths. The field-replaceable connector design simplifies integration into modular systems. Compare against variable equalizers if adjustable gain is needed instead of a fixed response.

Part Context

This component belongs to Pasternack's RF equalizer series, specifically designed for coaxial applications. It complements their broader portfolio of RF interconnects and passive components. The PE70A9004 addresses specific frequency-domain signal distortion issues in wideband systems. It is categorized under frequency/gain equalizers within the manufacturer's catalog structure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing SMA interfaces before considering alternative models.
