PE70A9022

Overview

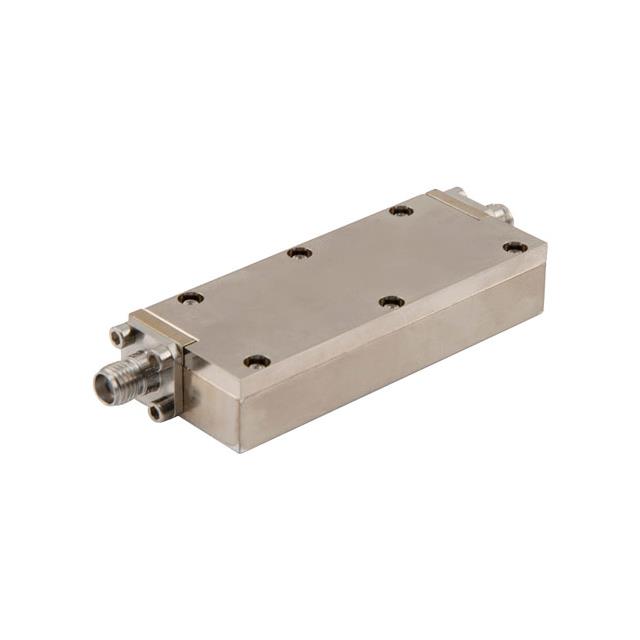

The PE70A9022 is a negative slope equalizer manufactured by Pasternack, designed for RF and wireless applications. It operates within a frequency range of 2 GHz to 6 GHz. The component provides a fixed equalizing value of 6 dB with an insertion loss of 0.8 dB. This device is engineered to compensate for signal attenuation characteristics in high-frequency circuits.

Feature Summary

• Provides fixed negative slope equalization
• Operates from 2 GHz to 6 GHz
• Maintains low insertion loss

Applications

• RF system calibration
• Wireless communication link compensation
• Signal integrity maintenance in high-frequency circuits

Procurement Notes

Verify the specific frequency range and equalization value against the official datasheet before procurement. Confirm that the 2 GHz to 6 GHz operational bandwidth aligns with your system requirements. Ensure the 0.8 dB insertion loss specification meets your link budget constraints. Check for any specific mounting or interface requirements detailed in the manufacturer's documentation.

Selection Notes

Select this component when a fixed negative slope response is required between 2 GHz and 6 GHz. Consider the 6 dB equalizing value and 0.8 dB loss when designing for signal balance. Evaluate if the passive nature of the equalizer suits your power handling needs. Compare against other equalizers if variable slope adjustment is necessary.

Part Context

This part belongs to Pasternack's RF and Wireless category, specifically under ICs and Modules. It serves as a specialized passive component for frequency-dependent signal correction. The product is distinct from active amplifiers or general-purpose attenuators, focusing solely on slope compensation.
