PE70A9023

Overview

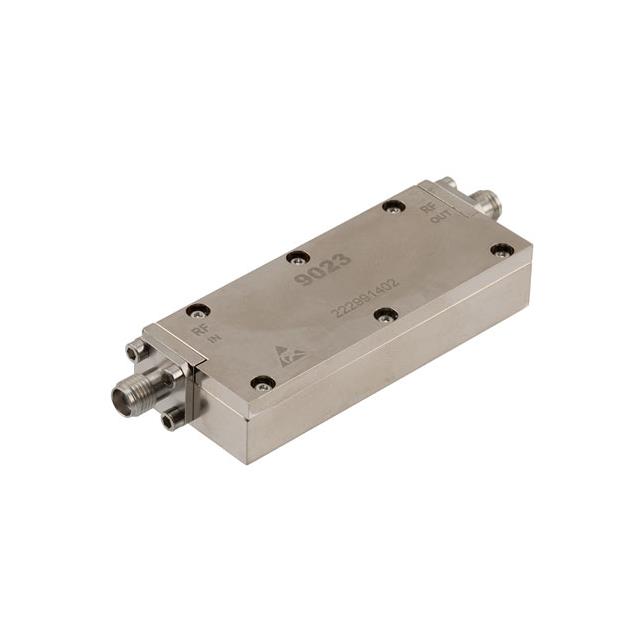

The Pasternack PE70A9023 is a linear equalizer designed for general-purpose RF applications. It operates within a frequency range of 2 GHz to 6 GHz and features SMA connectors. This component functions as a negative slope equalizer, intended to compensate for signal loss characteristics in high-frequency transmission paths.

Feature Summary

• Provides negative slope equalization for signal integrity management
• Operates across the 2 GHz to 6 GHz frequency spectrum
• Utilizes SMA connector interfaces for integration

Applications

• General-purpose RF signal conditioning
• Compensation for cable loss in microwave systems
• Signal path equalization in test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm exact insertion loss and return loss specifications required for your design. Ensure SMA connector gender and mating compatibility with existing system components. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process.

Selection Notes

Select this component when negative slope equalization is required between 2 GHz and 6 GHz. The SMA interface dictates physical connectivity constraints. Evaluate insertion loss and power handling requirements against system specifications before implementation.

Part Context

This unit belongs to the Pasternack RF IC and module category, specifically categorized under linear equalizers. It serves as a passive or active network element depending on internal architecture, distinct from standard attenuators or amplifiers by its frequency-dependent gain profile.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-reference with other Pasternack equalizers in the same series for potential functional equivalents if availability is an issue.
