Product Detailed Parameters

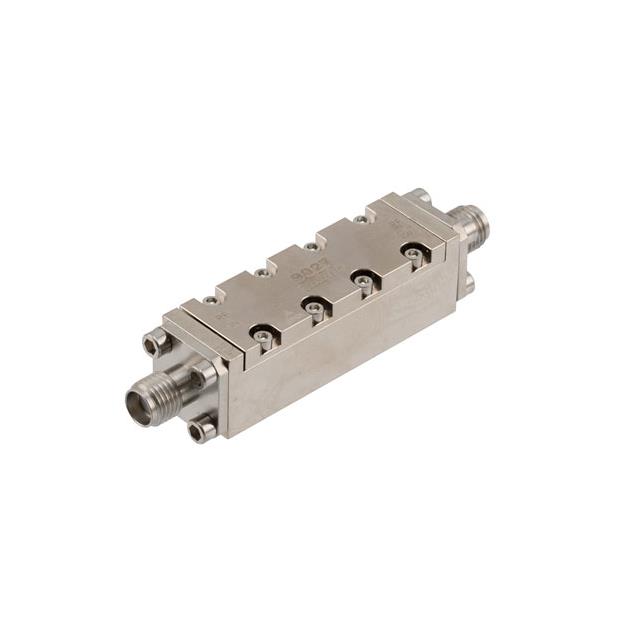

- Description：Negative Slope Equalizer, 4 GHz
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Linear Equalizer
- Frequency：4GHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview
The PE70A9027 is a linear equalizer manufactured by Pasternack, designed for RF signal conditioning applications. It operates within a frequency range of 4 GHz to 12 GHz and features SMA connectors for interface connectivity. This component functions as a general-purpose equalizer intended to compensate for signal loss or distortion in high-frequency circuits. The device is categorized under RF ICs and modules, providing specific frequency-dependent gain characteristics to maintain signal integrity across its operational bandwidth.
Feature Summary
- Provides linear equalization capabilities for RF signals
- Operates effectively within the 4 GHz to 12 GHz frequency spectrum
- Utilizes SMA connectors for standard RF interfacing
Applications
- General-purpose RF signal conditioning
- Compensation for signal loss in high-frequency circuits
- Maintenance of signal integrity in RF systems
Procurement Notes
Verify the exact datasheet specifications for insertion loss and return loss parameters prior to integration. Confirm that the SMA connector gender and impedance match the system requirements. Ensure the operating temperature range aligns with the environmental conditions of the intended application. Cross-reference the manufacturer's latest documentation for any updates to the electrical performance characteristics.
Selection Notes
Select this component when a fixed linear equalizer is required for the 4-12 GHz band. Consider the SMA interface compatibility with existing PCB traces or cable assemblies. Evaluate the need for general-purpose equalization versus adjustable variants based on system calibration capabilities. Verify that the module form factor fits within the available space constraints of the design.
Part Context
This part belongs to the Pasternack RF ICs and Modules category, specifically focusing on signal processing components. It complements their broader portfolio of attenuators, switches, and connectors. The PE70A9027 addresses specific needs for frequency response correction in microwave and millimeter-wave applications where passive components alone may not suffice for optimal signal quality.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Pasternack technical support for equivalent models with similar frequency ranges and connector types.
