Product Detailed Parameters
- Description：Negative Slope Equalizer, 8 GHz
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Linear Equalizer
- Frequency：8GHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

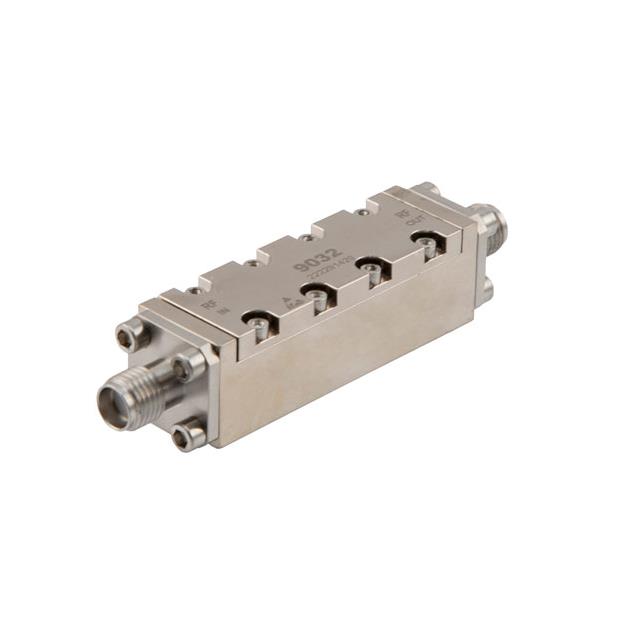

The Pasternack PE70A9032 is a signal conditioning negative slope equalizer designed for RF applications. It operates within a frequency range of 8 GHz to 12 GHz and provides a fixed equalizing value of 3 dB. The component exhibits a maximum insertion loss of 0.3 dB and supports a maximum input power of 250 mW. It utilizes SMA connectors for interface connectivity, ensuring compatibility with standard RF test and measurement setups.
Feature Summary
- Provides fixed negative slope signal equalization
- Operates in the 8 GHz to 12 GHz frequency band
- Features low insertion loss characteristics
Applications
- RF signal conditioning systems
- Test and measurement equipment calibration
- Communication system link budget compensation
Procurement Notes
Verify the specific connector gender and mating requirements against your existing infrastructure before procurement. Confirm that the 250 mW maximum power rating aligns with your system's operational levels to prevent component damage. Ensure environmental conditions remain within specified limits during operation.
Selection Notes
Select this component when a fixed 3 dB negative slope correction is required between 8 GHz and 12 GHz. Consider the 0.3 dB insertion loss impact on overall system gain. Verify SMA connector compatibility with adjacent components in the signal chain.
Part Context
This unit belongs to Pasternack's signal conditioning series, specifically engineered for precise attenuation and equalization tasks. It addresses signal degradation issues in high-frequency environments by applying a consistent negative slope profile across its designated bandwidth.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 3 dB fixed equalizing value, 8-12 GHz frequency range, and SMA interface specifications exactly.
FAQ
What is the maximum input power rating?
The maximum pin power rating is 250 mW.
Does this component provide variable or fixed attenuation?
It provides a fixed equalizing value of 3 dB.
