Product Detailed Parameters
- Description：Negative Slope Equalizer, 8 GHz
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Linear Equalizer
- Frequency：8GHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

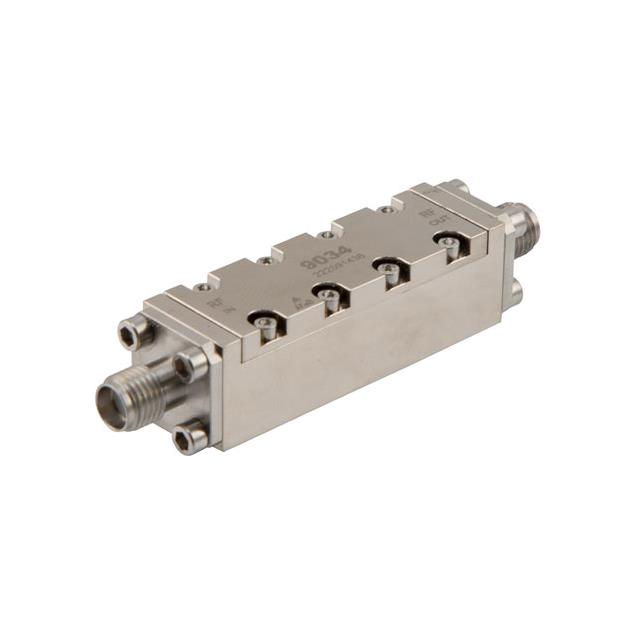

The PE70A9034 is a negative slope equalizer manufactured by Pasternack, designed for signal conditioning within the 8 GHz to 12 GHz frequency range. This component provides a fixed equalizing value of 10 dB with a maximum insertion loss of 0.6 dB. It features SMA connectors and supports a maximum input power (Pin) of 250 mW. The device operates as a linear equalizer to compensate for signal attenuation characteristics in high-frequency applications.
Feature Summary
- Provides fixed 10 dB negative slope equalization
- Operates within 8 GHz to 12 GHz frequency band
- Features SMA connector interface
Applications
- Signal conditioning in RF test and measurement equipment
- Compensation in microwave communication systems
- Linear equalization in high-frequency circuit design
Procurement Notes
Verify the specific datasheet version for the PE70A9034 to confirm detailed electrical tolerances and mechanical dimensions. Ensure compatibility with existing SMA infrastructure. Confirm that the 250 mW power rating aligns with system requirements. Check for any regional distribution restrictions or availability updates from authorized suppliers before finalizing procurement plans.
Selection Notes
Select the PE70A9034 when a fixed 10 dB negative slope correction is required between 8 GHz and 12 GHz. Consider this component for applications needing low insertion loss of 0.6 dB. Ensure the SMA interface matches the system topology. Verify that the 250 mW power handling capacity meets the operational signal levels without exceeding limits.
Part Context
The PE70A9034 belongs to Pasternack's lineup of RF signal conditioning components. It is categorized as a linear equalizer designed to modify signal amplitude responses. This part addresses specific attenuation needs in the microwave spectrum, offering a standardized solution for engineers requiring precise equalization values in high-frequency environments.
Replacement Considerations
No public confirmed substitute part numbers are available for the PE70A9034. Evaluate other Pasternack equalizers only if they match the exact 10 dB negative slope specification and 8-12 GHz frequency range. Connector type and power ratings must also be verified for interchangeability.
