PE8017

Overview

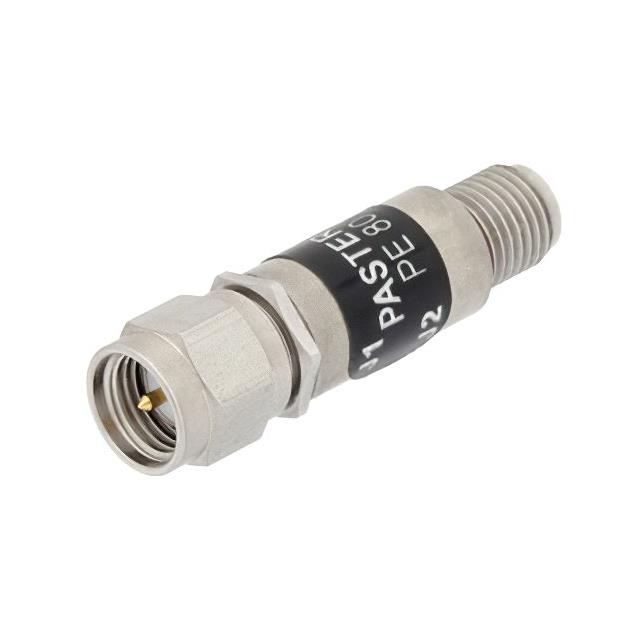

The PE8017 is a general-purpose RF IC limiter manufactured by Pasternack, designed for signal protection in radio frequency systems. It operates within a frequency range of 500 MHz to 1 GHz and supports a peak power handling capacity of 100 W. The component features an SMA connector interface and exhibits a typical insertion loss of 0.4 dB. It is engineered to function reliably across a temperature range from -55°C to 90°C, ensuring stable performance in demanding environments.

Feature Summary

• Provides high-power signal limiting with 100W peak power handling capability
• Operates effectively within the 500 MHz to 1 GHz frequency spectrum
• Features low insertion loss characteristics for minimal signal attenuation
• Designed for robust thermal stability across extreme temperature ranges

Applications

• RF signal protection circuits
• Transmitter output stages
• Receiver input protection
• General-purpose RF limiting applications

Procurement Notes

Verify the specific datasheet version when sourcing the PE8017 to ensure compliance with current technical specifications. Confirm that the SMA connector type matches your system requirements. Check for any updates regarding the operational temperature limits or peak power ratings. Ensure that the component meets the necessary environmental standards for your intended deployment environment before finalizing procurement decisions.

Selection Notes

Select the PE8017 when a general-purpose limiter is required for frequencies between 500 MHz and 1 GHz. Consider its 100W peak power rating for high-power applications. Evaluate the 0.4 dB insertion loss impact on system efficiency. Ensure the operating temperature range of -55°C to 90°C aligns with your environmental conditions. Verify compatibility with SMA connectors in your design architecture.

Part Context

The PE8017 belongs to Pasternack's portfolio of RF integrated circuits and modules, specifically categorized under RF limiters. It serves as a protective component in radio frequency chains, safeguarding sensitive downstream equipment from excessive power levels. This part is distinct from cable assemblies or connectors, focusing solely on active signal management and protection functions within the specified frequency band.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
