Product Detailed Parameters
- Description：High Power Limiter, SMA, 100W Pe
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Limiter
- Frequency：8GHz ~ 16GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：TNC In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

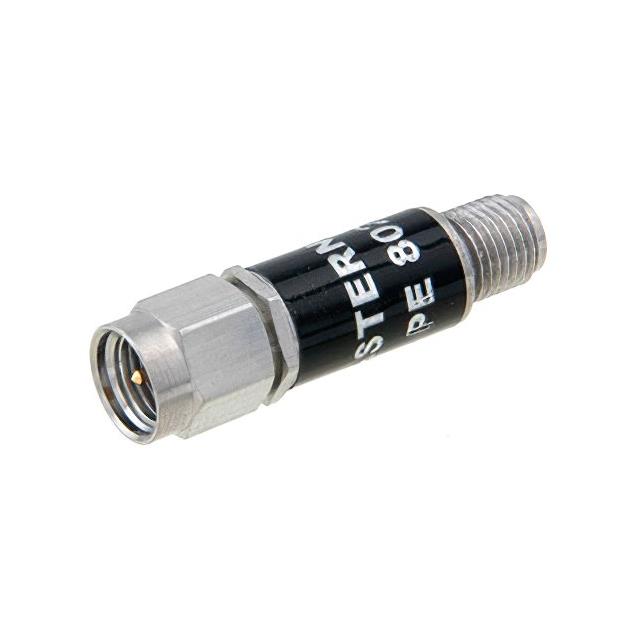

The PE8026 is an SMA PIN diode limiter designed for high-power signal protection. It operates within a frequency range of 8.0 to 16.0 GHz. The device handles a peak power of 100W with a maximum insertion loss of 2 dB. It provides a flat leakage level of 16 dBm and features a recovery time of 20 ns. The unit supports an operational temperature range from -55°C to 90°C.
Feature Summary
- Utilizes PIN diode technology for rapid signal limiting
- Provides high peak power handling capability
- Ensures low insertion loss during normal operation
Applications
- High-power RF signal protection
- Receiver front-end protection
- Test and measurement instrumentation
Procurement Notes
Verify the specific SMA connector gender and interface configuration required for your system integration. Confirm that the 100W peak power rating aligns with your application's transient requirements. Ensure the operating temperature range meets environmental conditions. Cross-reference the datasheet specifications against your system's impedance and frequency needs before finalizing procurement.
Selection Notes
Select this component when high-speed recovery and robust peak power handling are critical. The 20 ns recovery time suits applications requiring quick response to power spikes. Consider the 2 dB insertion loss impact on overall system gain. Evaluate the thermal management capabilities given the wide operational temperature range for reliable performance in varying environments.
Part Context
This part belongs to Pasternack's signal conditioning category, specifically focusing on protective devices. It complements their broader portfolio of RF interconnects and cable assemblies by offering active protection solutions. The SMA interface ensures compatibility with standard test equipment and communication systems operating in the specified microwave frequency bands.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical footprint and electrical specifications carefully if considering alternative manufacturers or generic equivalents.
