PE8030

Overview

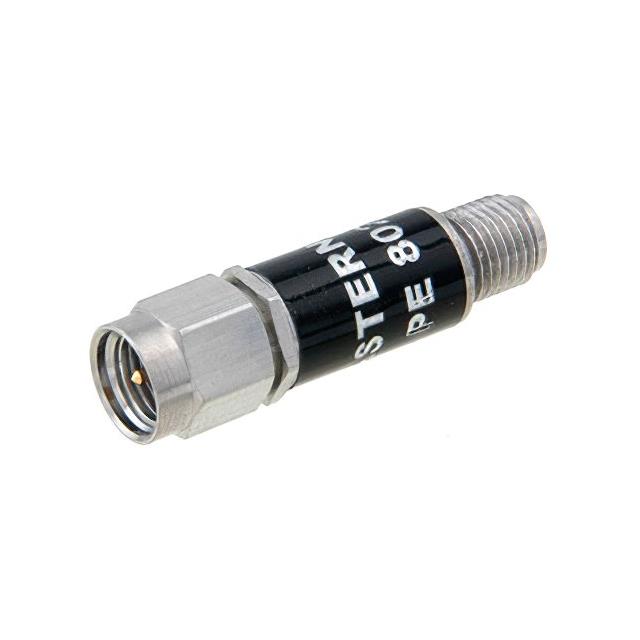

The PE8030 is a general-purpose RF IC limiter manufactured by Pasternack, designed for operation within the 1 GHz to 2 GHz frequency range. It features an SMA connector interface and supports a peak power handling capacity of 100 Watts. The device incorporates a PIN-Schottky limiting mechanism with a specified recovery time of 200 microseconds. Key electrical parameters include a maximum insertion loss of 0.6 dB and a minimum operational temperature range spanning from -55°C to +90°C.

Feature Summary

• Utilizes a PIN-Schottky diode configuration for signal limiting
• Provides high peak power handling capability up to 100 Watts
• Ensures low signal attenuation with maximum 0.6 dB insertion loss
• Operates reliably across extended industrial temperature ranges

Applications

• Protection of sensitive receiver front-ends from high-power signals
• General-purpose RF circuit protection in communication systems
• Test and measurement equipment requiring signal level control

Procurement Notes

Verify the specific datasheet version and technical specifications directly with Pasternack Enterprises or authorized distributors before procurement. Confirm that the SMA connector type and 100W peak power rating align with your system requirements. Ensure environmental conditions remain within the stated -55°C to +90°C operating range for reliable performance.

Selection Notes

Select the PE8030 when a robust, general-purpose limiter is required for frequencies between 1 GHz and 2 GHz. Its 100W peak power rating makes it suitable for applications involving high-energy RF signals. Consider the 200us recovery time and 0.6dB insertion loss as critical factors for system integrity and signal fidelity in high-power environments.

Part Context

The PE8030 belongs to Pasternack's portfolio of RF misc ICs and modules, specifically categorized under RF limiters. It serves as a protective component within radio frequency systems, safeguarding downstream components from damage due to excessive input power levels while maintaining signal integrity through minimal insertion loss.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Pasternack technical support for potential equivalents if this specific model is unavailable.
