Product Detailed Parameters

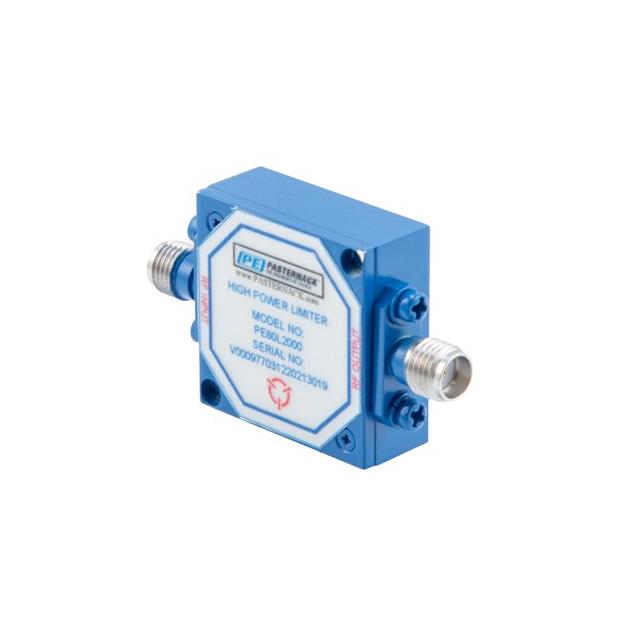

- Description：SMA High Power Limiter, 100 Watt
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Limiter
- Frequency：6GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview
The PE80L2000 is a high-power RF limiter manufactured by Pasternack, designed for signal conditioning within the 6 GHz to 18 GHz frequency range. It features SMA connectors and handles a continuous wave input power of 10 W. The device maintains a flat leakage output of 15 dBm (0.032 W) under maximum input conditions. This component serves as a protective element in RF systems, limiting excessive power levels to safeguard downstream sensitive equipment from damage while maintaining signal integrity across its specified bandwidth.
Feature Summary
- Provides high-power signal limiting protection for RF circuits
- Operates effectively across a wide frequency spectrum from 6 GHz to 18 GHz
- Utilizes SMA connector interfaces for standard integration
- Maintains consistent flat leakage output during power limiting events
Applications
- RF system protection against over-power conditions
- Signal conditioning in microwave communication links
- Test and measurement equipment front-end protection
Procurement Notes
Verify the specific datasheet version for the PE80L2000 to confirm current manufacturing status and detailed electrical specifications. Ensure compatibility with existing SMA-based infrastructure. Check for any recent updates regarding material composition or performance tolerances that may affect integration into critical RF pathways.
Selection Notes
Select the PE80L2000 when application requirements demand reliable power limiting within the 6-18 GHz band. Consider its 10 W CW input handling capability and 15 dBm leakage limit. Evaluate mechanical fit for SMA connections and thermal management needs for continuous operation in high-power environments.
Part Context
The PE80L2000 belongs to Pasternack's lineup of high-reliability limiters, which includes models like PE80L1000 and PE80L1001. These components are categorized under signal conditioning and RF IC modules. They are engineered to provide robust protection in demanding RF applications, ensuring system stability and component longevity.
Replacement Considerations
The PE80L1000 is a documented alternative within the same high-reliability limiter series. Verify if its 100W peak power and 14 dBm leakage specifications align with the specific power handling and isolation requirements of the target application before substitution.
