PE80L2001

Overview

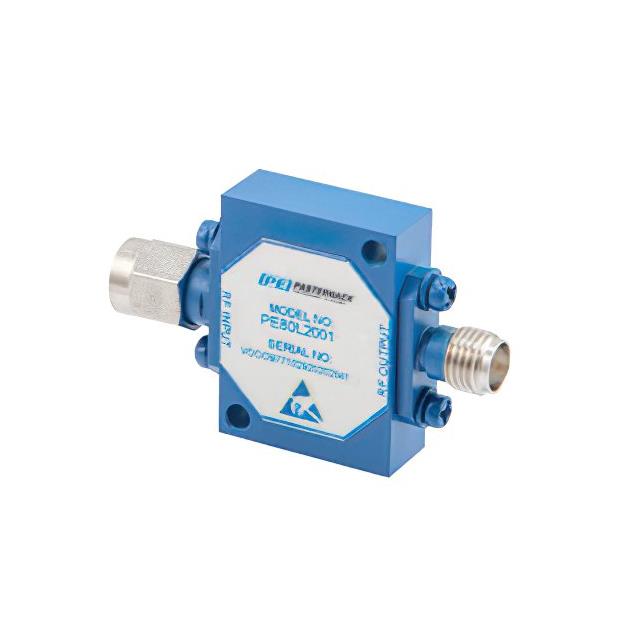

The Pasternack PE80L2001 is a general-purpose RF IC limiter designed for signal conditioning applications. It operates within a frequency range of 2 GHz to 18 GHz and features SMA connectors for interface compatibility. The device is engineered to handle high peak power levels, specifically rated at 200 Watts. Key performance specifications include a recovery time of 100 nanoseconds and a flat leakage of 14 dBm. This component serves as a protective element in radio frequency circuits, ensuring signal integrity under high-power conditions.

Feature Summary

• Provides general-purpose limiting protection across a broad microwave frequency spectrum
• Engineered with SMA connector interfaces for standard integration
• Capable of handling high peak power input levels up to 200 Watts
• Features rapid recovery characteristics to maintain system availability

Applications

• Radio frequency circuit protection
• Signal conditioning modules
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific SMA connector gender and cable length requirements against your system design before ordering. Confirm that the 200 Watt peak power rating aligns with your maximum expected signal inputs. Ensure the operating frequency range covers your entire application bandwidth. Check for any environmental ratings if the deployment involves extreme temperatures or humidity.

Selection Notes

Select this component when a general-purpose limiter is required for frequencies between 2 GHz and 18 GHz. Consider the 100 ns recovery time for applications requiring fast signal restoration after limiting events. Evaluate the 14 dBm leakage specification to ensure it meets your noise floor requirements. Compare the SMA interface against your existing board layout or cable assembly constraints.

Part Context

The PE80L2001 belongs to Pasternack's line of RF misc ICs and modules, specifically categorized under signal conditioning components. It is part of a broader portfolio of passive and active RF devices designed for various industrial and commercial applications. This model represents a specialized solution for managing high-power signals within microwave frequency bands.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component.
