PE8206

$438.46

Description：Adjustable Phase Trimmer, DC to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:a5f733c5649d Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Adjustable Phase Trimmer, DC to
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Phase Trimmer
Frequency：0Hz ~ 26GHz
RF Type：Radar
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：SMA In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE8206

Overview

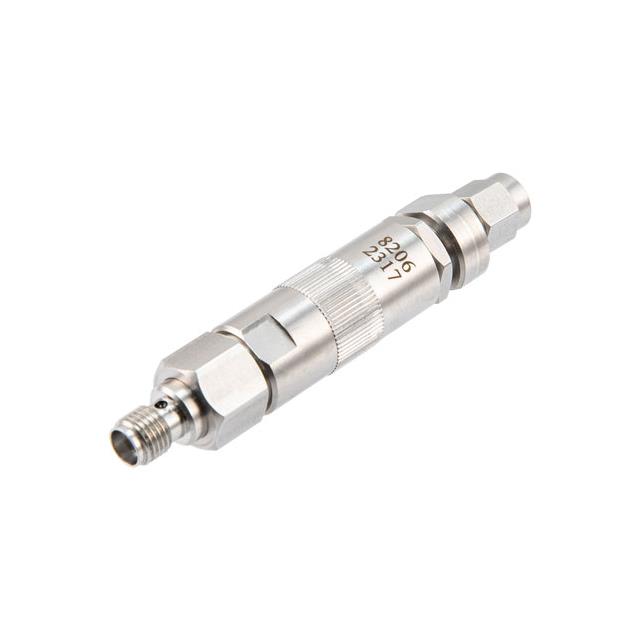

The Pasternack PE8206 is an adjustable phase trimmer designed for RF and microwave applications. It operates from DC to 26 GHz, providing precise phase adjustment capabilities. The component features a passivated stainless steel housing, ensuring durability in demanding environments. With a length of 2.598 inches and a width of 0.5 inches, it offers a compact form factor suitable for integration into various systems. This device allows for fine-tuning of signal phase within its specified frequency range.

Feature Summary

Adjustable phase trimming capability across a wide frequency spectrum
Passivated stainless steel housing for enhanced durability
Compact physical dimensions facilitating system integration

Applications

RF and microwave circuit testing
Signal processing systems requiring phase alignment
Wireless communication equipment calibration

Procurement Notes

Verify the specific datasheet version for detailed electrical parameters and mechanical drawings. Confirm compatibility with your system's frequency requirements and physical space constraints. Ensure that the passivated stainless steel housing meets environmental standards for your application. Check for any specific handling instructions due to the precision nature of the phase trimming mechanism.

Selection Notes

Consider the PE8206 when precise phase adjustment is required up to 26 GHz. Its robust construction makes it suitable for industrial and commercial use. Evaluate the need for adjustable phase versus fixed phase shifters based on system flexibility requirements. The compact size is advantageous for space-constrained designs.

Part Context

The PE8206 belongs to Pasternack's line of RF phase trimming components. It complements other adapters and cable assemblies by providing active phase control. This component is part of a broader portfolio aimed at supporting complex RF system configurations and testing scenarios.

Replacement Considerations

No public confirmed substitute part numbers are available for the PE8206. Users should consult Pasternack directly for potential alternatives or upgrades.
