PE8208

Overview

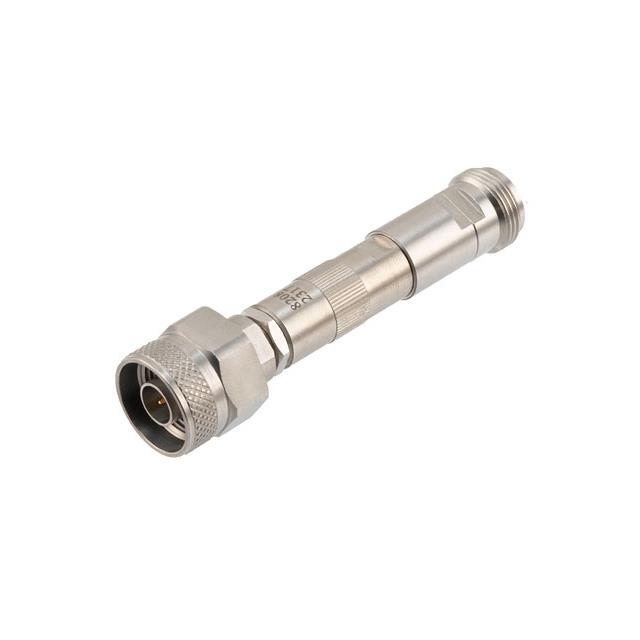

The PE8208 is an adjustable phase trimmer manufactured by Pasternack, designed for RF applications spanning from DC to 10 GHz. It features N-type connectors and a passivated stainless steel housing. The device provides an adjustable phase shift of 15 degrees per GHz. Key physical specifications include a length of 3.252 inches and a width of 0.748 inches. The unit weighs approximately 14.061 grams and is packaged in bulk.

Feature Summary

• Adjustable phase trimming capability across a wide frequency range
• Passivated stainless steel housing for durability
• N-type connector interface

Applications

• Radar systems
• RF test and measurement equipment
• Wireless communication infrastructure

Procurement Notes

Verify the specific datasheet version for detailed electrical parameters before integration. Confirm connector compatibility with existing N-type interfaces. Check regional availability as distribution may be restricted in certain areas. Ensure environmental ratings meet operational requirements.

Selection Notes

Select this component when precise phase adjustment is required within the DC to 10 GHz spectrum. Consider the physical dimensions for board layout constraints. Verify that the stainless steel construction aligns with corrosion resistance needs. Compare phase linearity specifications against system tolerance requirements.

Part Context

This component belongs to the Adjustable Phase Trimmers series by Pasternack. It serves as a specialized RF integrated circuit module for phase control. The product falls under the broader category of wireless and RF integrated circuits, specifically targeting precision signal manipulation tasks.

Replacement Considerations

Consult official documentation for direct substitutes. Alternative models may offer different phase rates or connector types. Ensure any replacement maintains compatible frequency ranges and mechanical form factors.
