Product Detailed Parameters
- Description：Adjustable Phase Trimmer, DC to
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Phase Trimmer
- Frequency：0Hz ~ 12GHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

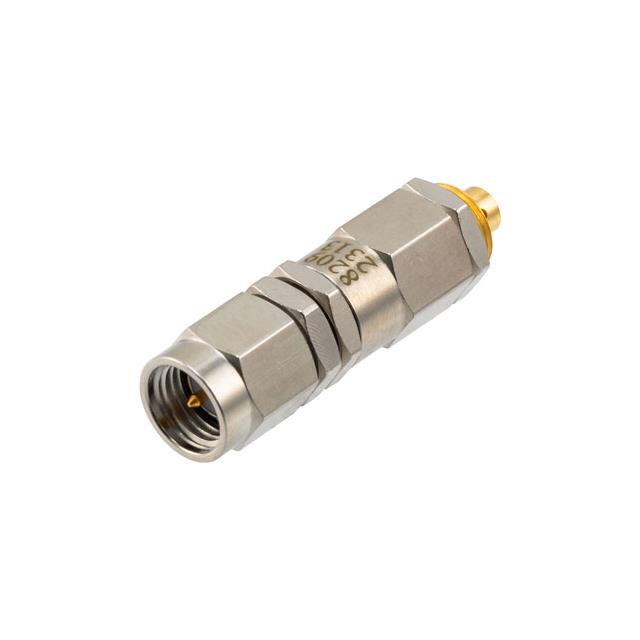

The PE8209 is an adjustable phase trimmer manufactured by Pasternack, designed for RF and radar applications. It operates within a frequency range of DC to 12 GHz. The component features an adjustable phase shift capability of 4 degrees per GHz. It utilizes SMA male connectors compatible with RG405 cables and is housed in a brass body. The unit weighs approximately 9.072 grams and is packaged in bulk quantities.
Feature Summary
- Adjustable phase trimming functionality across a wide frequency spectrum
- SMA male connector interface for standard coaxial integration
- Durable brass housing construction
Applications
- Radar systems requiring precise phase alignment
- RF signal processing circuits
- Wireless communication infrastructure testing
Procurement Notes
Verify the specific datasheet version for detailed electrical characteristics before integration. Confirm that the SMA male connector compatibility aligns with existing RG405 cable assemblies in the design. Ensure the operating environment supports the specified frequency range up to 12 GHz. Check for any regional distribution restrictions or availability limitations prior to ordering.
Selection Notes
Select this component when a fixed-phase solution is insufficient and variable phase adjustment is required. The 4 degrees per GHz adjustability allows for fine-tuning in high-frequency designs. Consider the brass body material for thermal and mechanical stability. Ensure the SMA interface matches the system's connector requirements without needing adapters.
Part Context
This part belongs to the Adjustable Phase Trimmers series from Pasternack. It falls under the broader category of Phase Detectors/Shifters within wireless and RF integrated circuits. The product is currently listed as active by the manufacturer, indicating ongoing production support and availability for new designs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify direct compatibility if considering alternative manufacturers for phase trimming functions.
