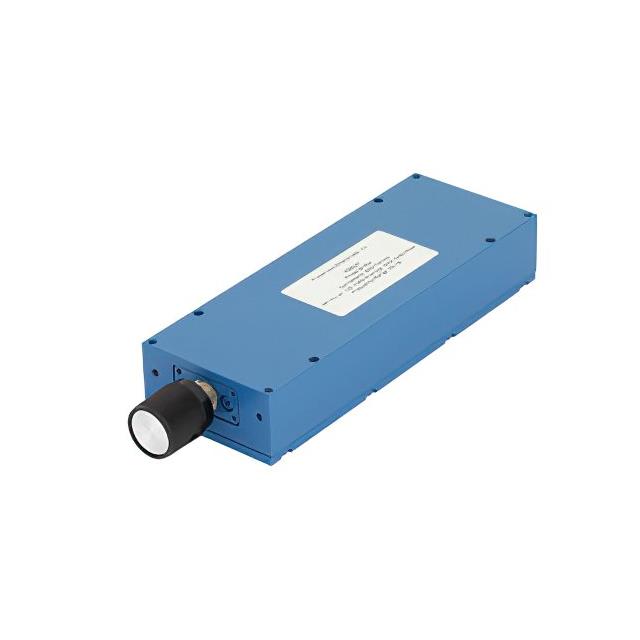

PE8247

$1,661.92

Description：Adjustable Phase Shifter, DC to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:3fc68d160264 Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Adjustable Phase Shifter, DC to
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Phase Shifter
Frequency：0Hz ~ 18GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：Module
Grade：-
Qualification：-

Download product information

PE8247

Overview

The Pasternack PE8247 is an adjustable phase shifter designed for RF applications. It operates from DC to 18 GHz with SMA connectors. The device provides an adjustable phase shift of 60 degrees per GHz minimum. It features a stainless steel body and is suitable for phase matching between cables.

Feature Summary

Adjustable phase shifting capability across a wide frequency range
SMA connector interface for standard RF integration
Stainless steel construction for durability

Applications

RF cable phase matching
General purpose RF phase adjustment
Wireless communication systems requiring phase alignment

Procurement Notes

Verify the exact model suffix when ordering, as variations may exist. Confirm connector type and frequency range requirements against the official datasheet. Ensure compatibility with existing SMA interfaces in your system design before procurement.

Selection Notes

Select this component when precise phase adjustment is required within the DC to 18 GHz range. Consider the 60 deg/GHz adjustability for fine-tuning applications. Verify that SMA connectors match your system's interface standards.

Part Context

This part belongs to Pasternack's adjustable phase trimmer series. These components are specialized for RF circuits where phase alignment between signal paths is critical. The PE8247 offers broad bandwidth coverage compared to narrower band alternatives.

Replacement Considerations

Check for direct substitutes like PE8247A if specific performance enhancements are needed. Verify pinout and connector compatibility before substituting any similar phase shifter models.
