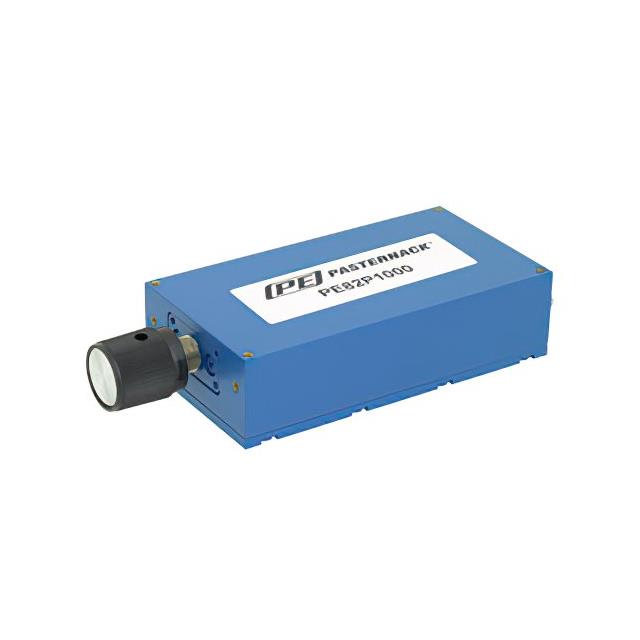

PE82P1000

$3,695.12

Description：Adjustable Phase Shifter, 18 GHz
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:f05691612929 Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Adjustable Phase Shifter, 18 GHz
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Phase Shifter
Frequency：18GHz ~ 40GHz
RF Type：Radar
Secondary Attributes：360° Phase Shift
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE82P1000

Overview

The PE82P1000 is an adjustable phase shifter manufactured by Pasternack, designed for high-frequency applications within the 18 GHz to 40 GHz range. This component features a 2.92mm connector interface and provides a minimum adjustable phase shift of 360 degrees. It belongs to the Adjustable Phase Shifters series under Wireless & RF Integrated Circuits. The unit weighs approximately 36.287 grams and is packaged in bulk quantities.

Feature Summary

Provides continuous phase adjustment capability across a full 360-degree range
Operates effectively within the millimeter-wave frequency spectrum from 18 GHz to 40 GHz
Utilizes precision 2.92mm connector interfaces for reliable signal transmission

Applications

Millimeter-wave radar systems requiring precise phase control
Wireless communication test and measurement setups
Phased array antenna calibration and beam steering

Procurement Notes

Verify current availability status as supply may be restricted or limited depending on regional distribution channels. Confirm that the 2.92mm connector type matches system requirements before integration. Ensure environmental operating conditions align with specified performance parameters for optimal reliability during deployment.

Selection Notes

Select this component when specific phase manipulation is required at frequencies exceeding 18 GHz. The 2.92mm interface ensures compatibility with standard high-frequency test equipment. Consider the physical weight and bulk packaging format for mechanical integration planning within larger RF assemblies.

Part Context

This device is part of Pasternack's broader portfolio of wireless and RF integrated circuits. It falls under the category of phase detectors and shifters, serving specialized roles in high-frequency signal processing where precise timing and phase alignment are critical for system performance and accuracy.
