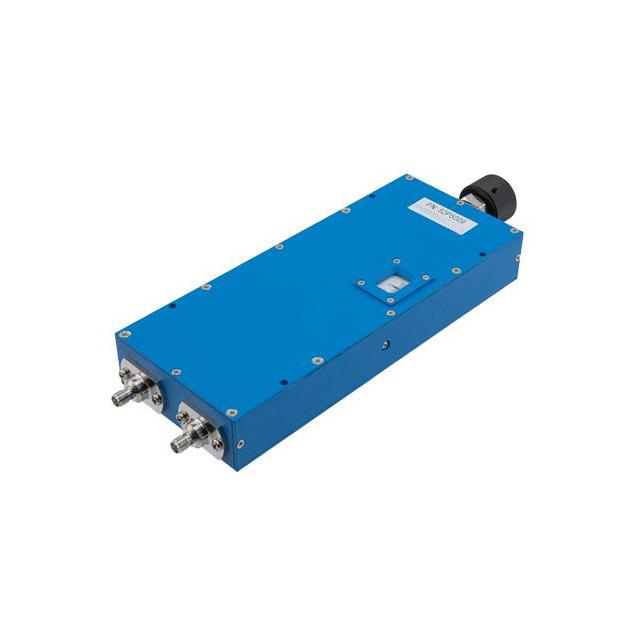

PE82P5009

Overview

The PE82P5009 is an adjustable phase shifter manufactured by Pasternack, designed for RF applications spanning from DC to 8GHz. It features SMA female connectors and provides a continuous phase adjustment capability of 90 degrees per GHz across its operational bandwidth. This module integrates phase shifting functionality into a compact form factor suitable for radar and communication systems requiring precise signal timing control.

Feature Summary

• Adjustable phase shift capability with a rate of 90 degrees per GHz
• Operates across a frequency range from DC to 8GHz
• Utilizes SMA female connectors for interface compatibility

Applications

• Radar systems requiring precise phase control
• RF communication links needing signal alignment
• Test and measurement equipment for phase characterization

Procurement Notes

Verify the specific datasheet version for the PE82P5009 to confirm current RoHS compliance status and detailed electrical performance metrics. Ensure that the SMA connector gender and mating requirements align with the system design. Confirm availability through authorized Pasternack distributors as supply chain conditions may vary.

Selection Notes

Select the PE82P5009 when a wideband adjustable phase shift is required up to 8GHz. The 90 degrees per GHz adjustment rate allows for fine-tuning in high-frequency applications. Consider the SMA interface for standard connectivity needs within this frequency range.

Part Context

This component belongs to the Adjustable Phase Shifters series by Pasternack, falling under the category of Wireless & RF Integrated Circuits. It serves as a specialized module for manipulating signal phase in RF environments, distinct from fixed-phase components or digital phase shifters.

Replacement Considerations

No public confirmed substitute part numbers are available for the PE82P5009. Users should consult Pasternack technical support for potential alternatives with similar frequency ranges and adjustment characteristics.
